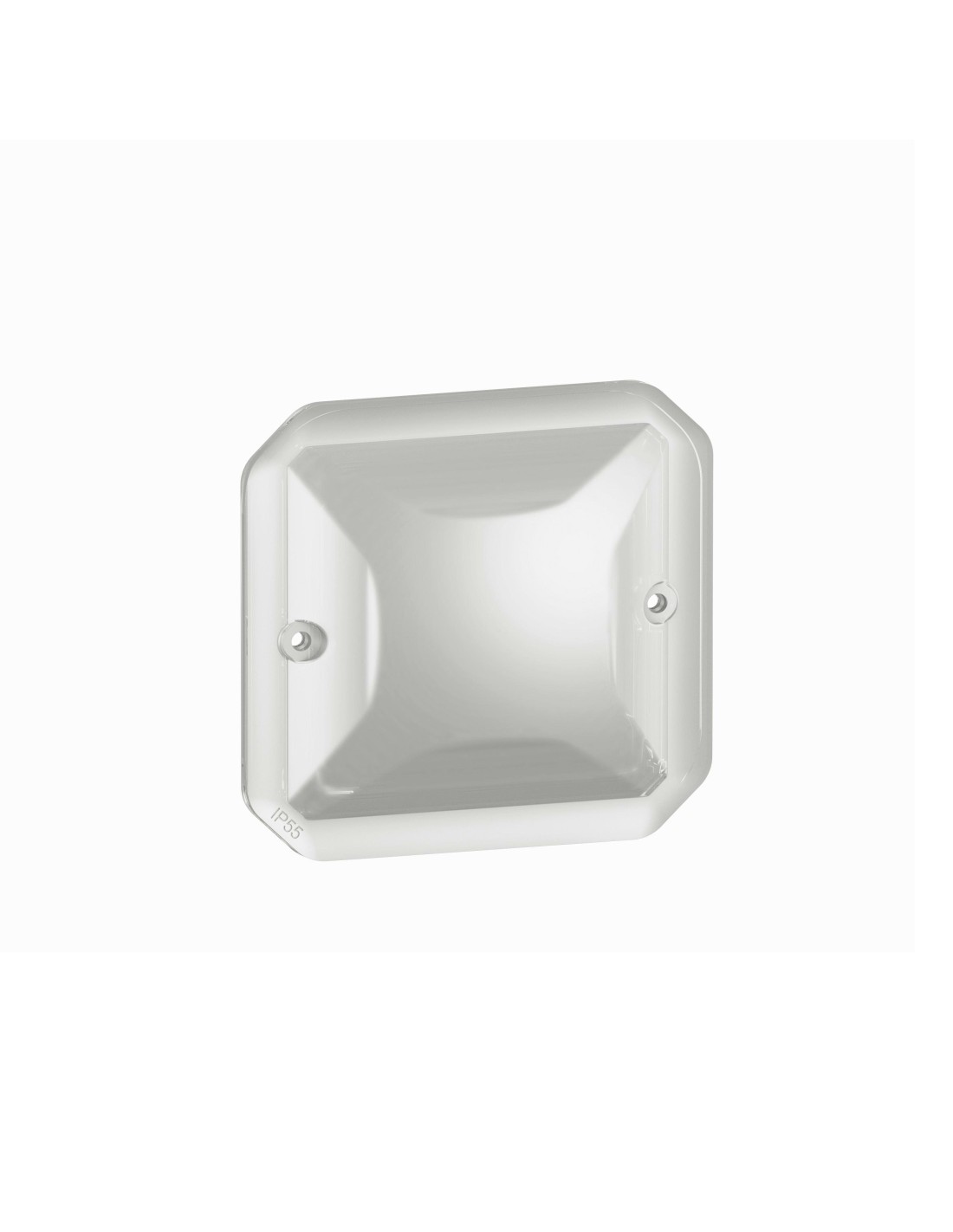

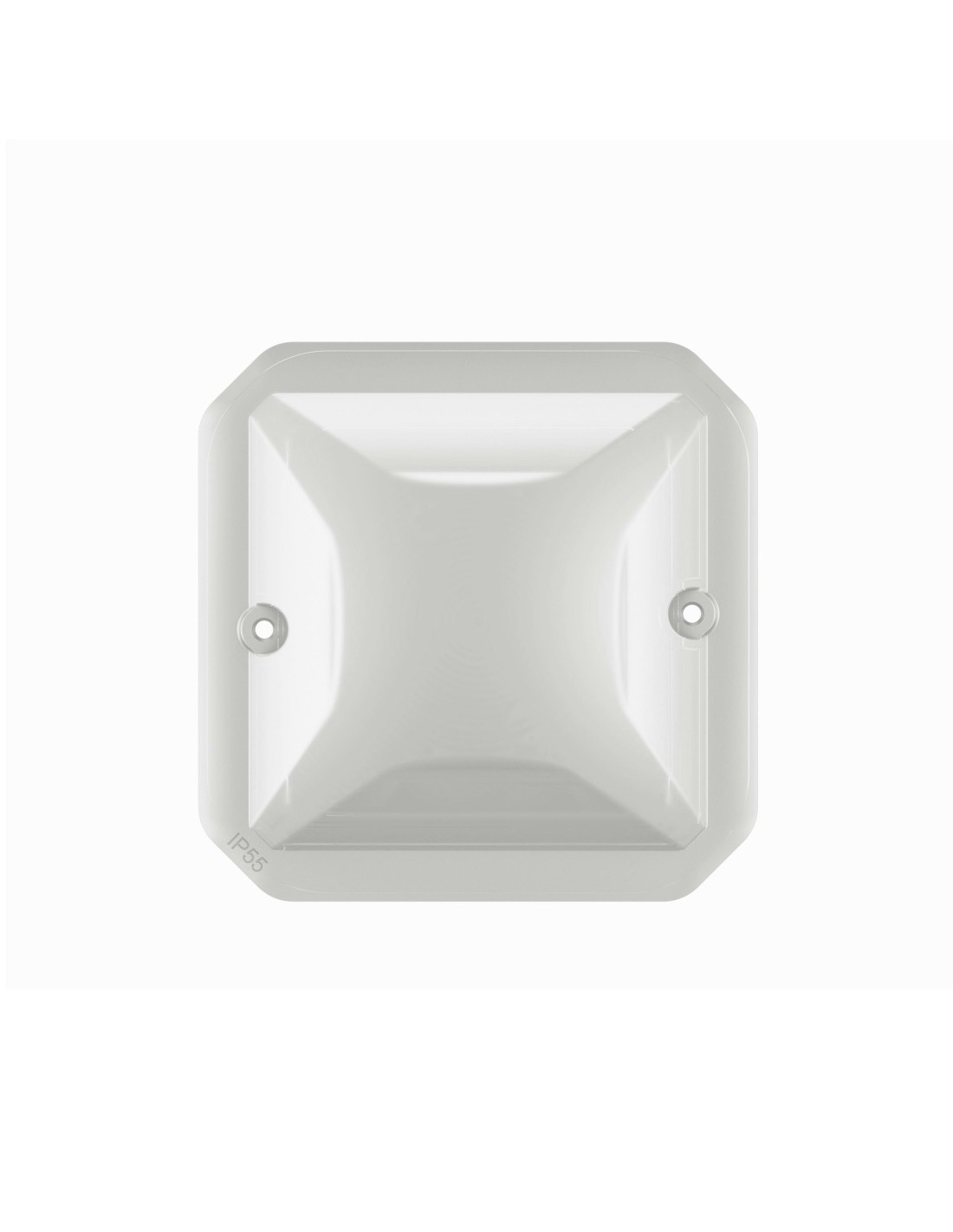

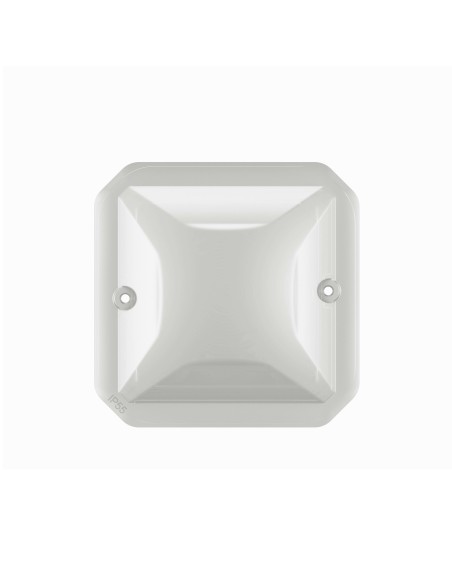

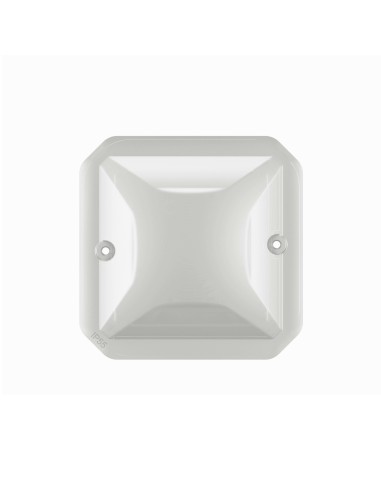

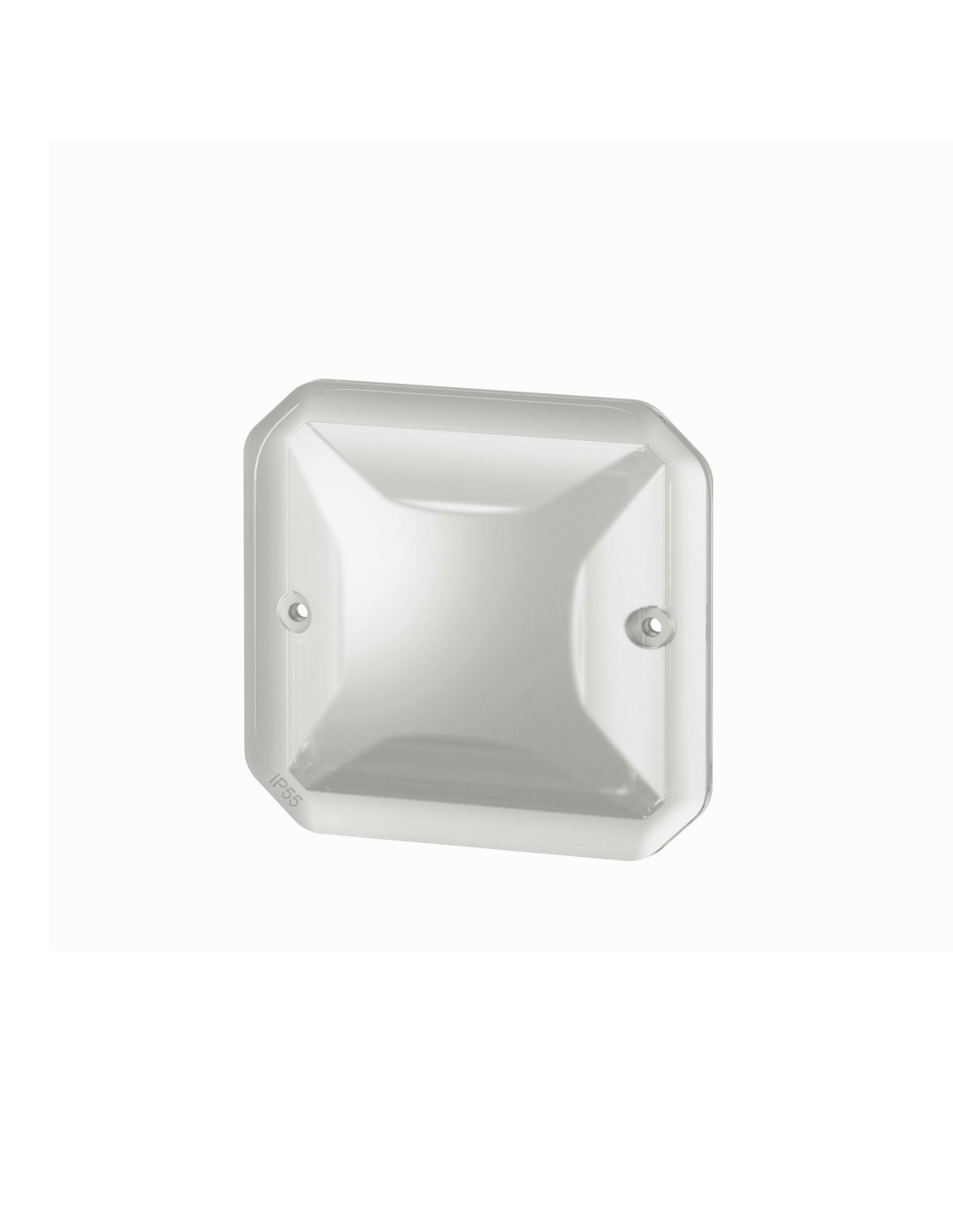

Clear Diffuser Plexo Modular IP55 IK08

Modular colourless diffuser designed specifically for the plexo series ballistic pilot. Its main function is to allow light output in a uniform and protected manner, facilitating signaling in electrical installations. This component is integrated into the ballistics system to offer a clean and functional aesthetic.

Technical characteristics

• Material: Thermoplastic halogen-free plastic.
• Colour: Colourless with glossy surface and no special treatment.
• Dimensions: 70.5 mm wide, 70.5 mm high and 25 mm deep.
• Protection: IP55 degree and IK08 impact resistance.
• Fixation: By thread.
• Includes log or control window for light output.

The combination of its IP55 protection and IK08 resistance makes it suitable for environments that require durability against moderate dust and shocks. The halogen-free material contributes to fire safety, while threading ensures a firm and stable installation.
