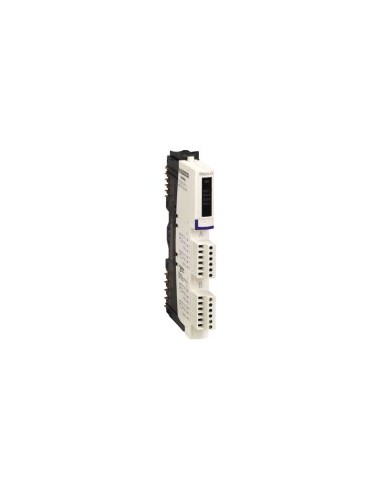

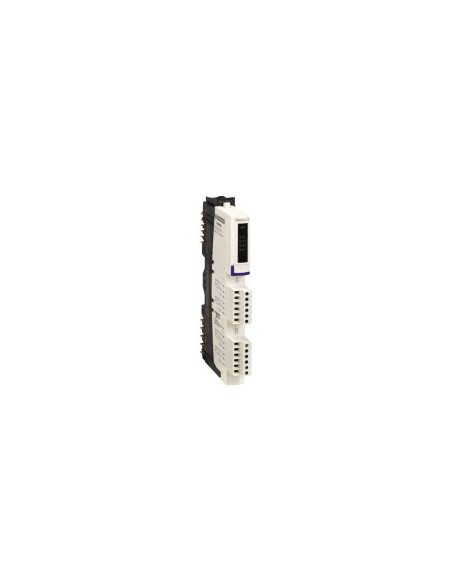

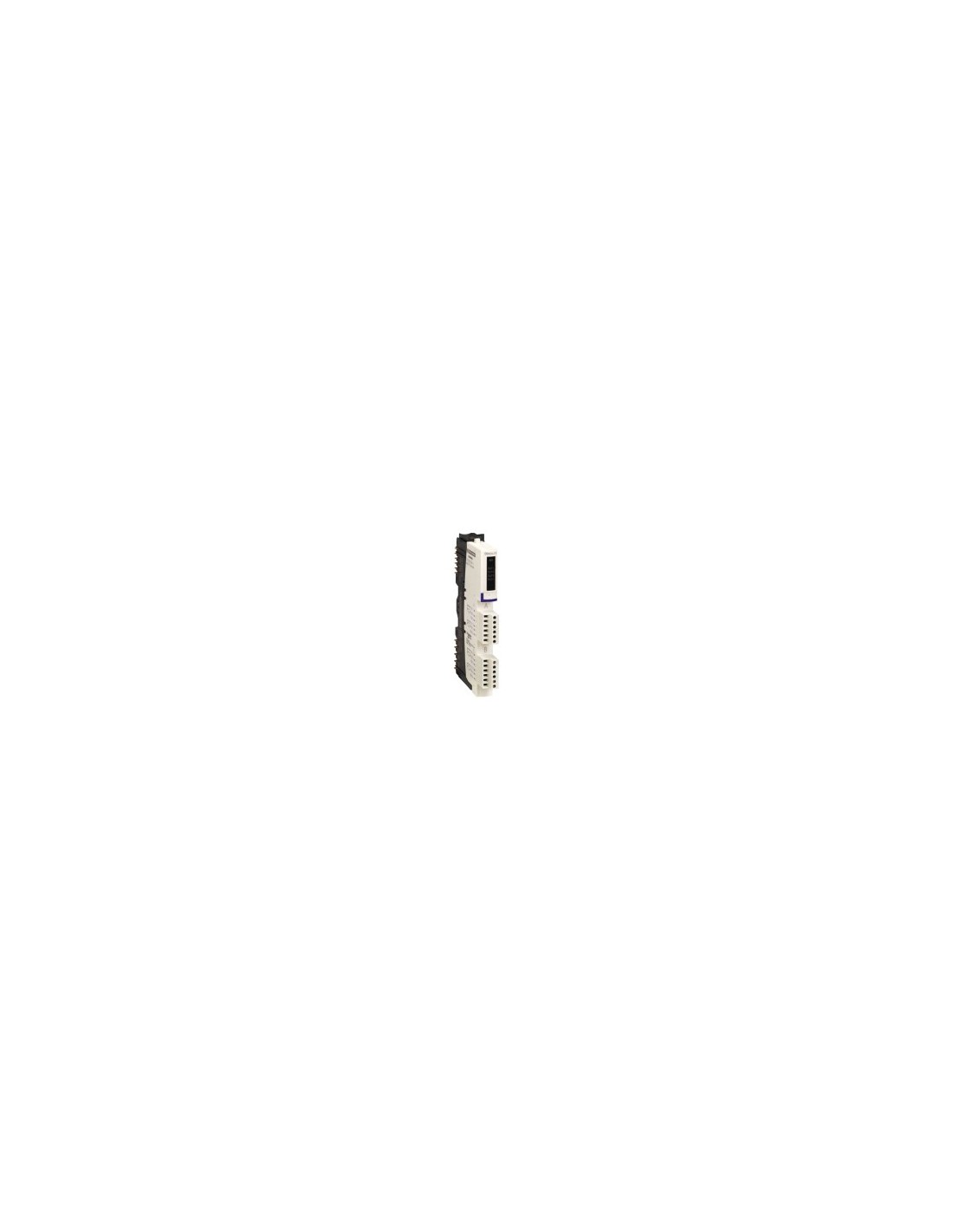

Basic digital output kit 4 channels 24 V DC

Basic digital output kit for industrial automation systems, compatible with the Modicon STB range distributed I/O solution. Designed to control up to 4 digital outputs in industrial environments, with connection via screw connector and spring clamp. It works with 24 V DC voltage and positive logic, offering quick responses with 560 μs (off-a-on) and 870 μs (on-a-off) times.

Technical characteristics

• Number of digital outputs: 4
• Digital output type: Solid state
• Output voltage: 24 V DC
• Logic of discrete output: Positive
• Output voltage: 19,2...30 V DC
• Maximum absolute voltage: 56 V for 1.3 ms
• Response time: 560 μs (off-a-on), 870 μs (on-a-off)
• Cold exchange: Yes
• Delayed hot exchange: Not for basic NIM
• Integrated protection: PDM fuse (5A), reverse polarity, short circuit, thermal overload
• Inter-channel isolation and logic bus: 1500 V for 1 minute
• Overvoltage current: 2.5 A for 0.5 ms
• Maximum load capacity: 50 μF
• Current consumption: 70 mA in 5 V DC for logic bus
• Power supply: Power distribution module
• Operating ambient temperature: 0...60 °C
• Storage ambient temperature: -40...85 °C
• Relative humidity: 95 % at 60 °C without condensation
• Vibration resistance: 3 gn in 58...150 Hz (DIN 35 x 7.5 mm), 5 gn in 58...150 Hz (DIN 35 x 15 mm), ±0.35 mm in 10...58 Hz
• Shock resistance: 30 gn for 11 ms
• Degree of protection: IP20 according to IEC 61131-2 class 1
• Degree of contamination: 2 according to IK07
• Maximum operating altitude: ≤ 2000 m
• Status LED: 1 green LED (RDY), 1 green LED per channel (OUT1 to OUT4)
• Compatibility: I/O STBXBA1000 base, power distribution module STBPDT3100/3105
• Standards: IEC 61131-2
• Certifications: CE, CSA NF UL
• Weight of product: 0.11 kg
• Height: 13.9 mm
• Depth: 70 mm
• Width: 128.3 mm
