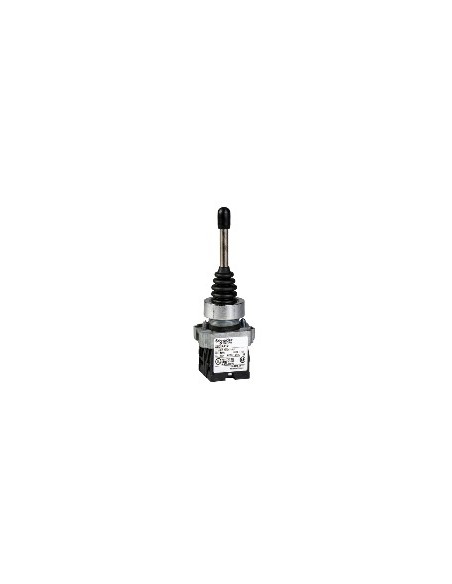

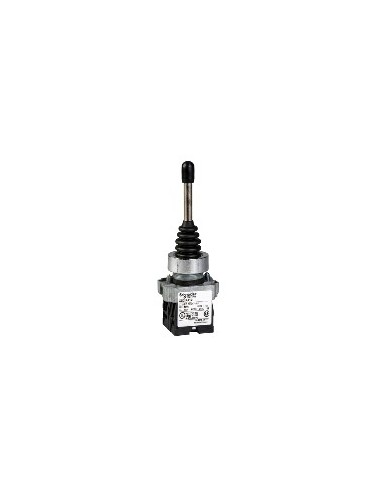

2-direction full joystick controller 22 mm

Full 2-direction joystick controller with 1 NA contact per direction, designed for industrial applications. 22 mm mounting in silver chrome-plated metal, part of the Harmony XD2 range. Built for demanding environments with high mechanical and electrical durability.

Technical features

• Mounting diameter: 22 mm
• Bevel material: Silver chrome-plated metal
• Rated operating current: 0.27 A at 250 V, DC-13, Q300; 3 A at 240 V, AC-15, A300
• Rated insulation voltage: 500 V (contamination degree 3) according to EN/IEC 60947-1; 600 V (contamination degree 3) according to UL 508 and CSA C22.2 No 14
• Surge voltage resistance: 6 kV according to EN/IEC 60947-1
• Operator position information: All positions ((*))
• Notch per direction: 1
• Operator direction information: 2 directions
• Contact type and composition: 1 NA for time delayed ((*))
• Short-circuit protection: 10 A gG (gl) Neozed, cartridge fuse according to EN/IEC 60947-5-1
• Connections - terminals: Clamp-screw terminals, 2 x 1.5 mm² with or without terminal; 1 x 0.5 mm² with or without terminal; 1 x 2.5 mm² with or without terminal
• Electrical durability: 1,000,000 cycles, AC-15 at 230 V, 127 V, 48 V; DC-13 at 24 V, 48 V, 120 V; operating rate <3600 cyc/h, load factor: 0.5
• Contact code designation: A600-Q600
• Overvoltage category: Class I according to IEC 61140
• Mechanical durability: 1,000,000 cycles
• Mounting center: 30 x 85 mm
• Height: 122 mm
• Depth: 40 mm
• Product weight: 0.115 kg
• Compatibility code: XD2
• Standards: EN/IEC 60947-5-1
• Product certifications: CSA, UL, LROS (Lloyds Register of Shipping)
• Protective treatment: TC
• Storage ambient temperature: -40…70 °C
• Operating ambient temperature: -25…70 °C
• Vibration resistance: 5 gn (f = 40…500 Hz) according to IEC 60068-2-6
• Shock resistance: 20 gn according to IEC 60068-2-27
• Protection degree IP: IP66 according to Activate/Deactivate Ig
• REACH regulation: Reference does not contain SVHC
• REACH compliant without SVHC: Yes
• EU RoHS directive: Proactive compliance (product outside RoHS directive scope)
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: X
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a general waste bin
