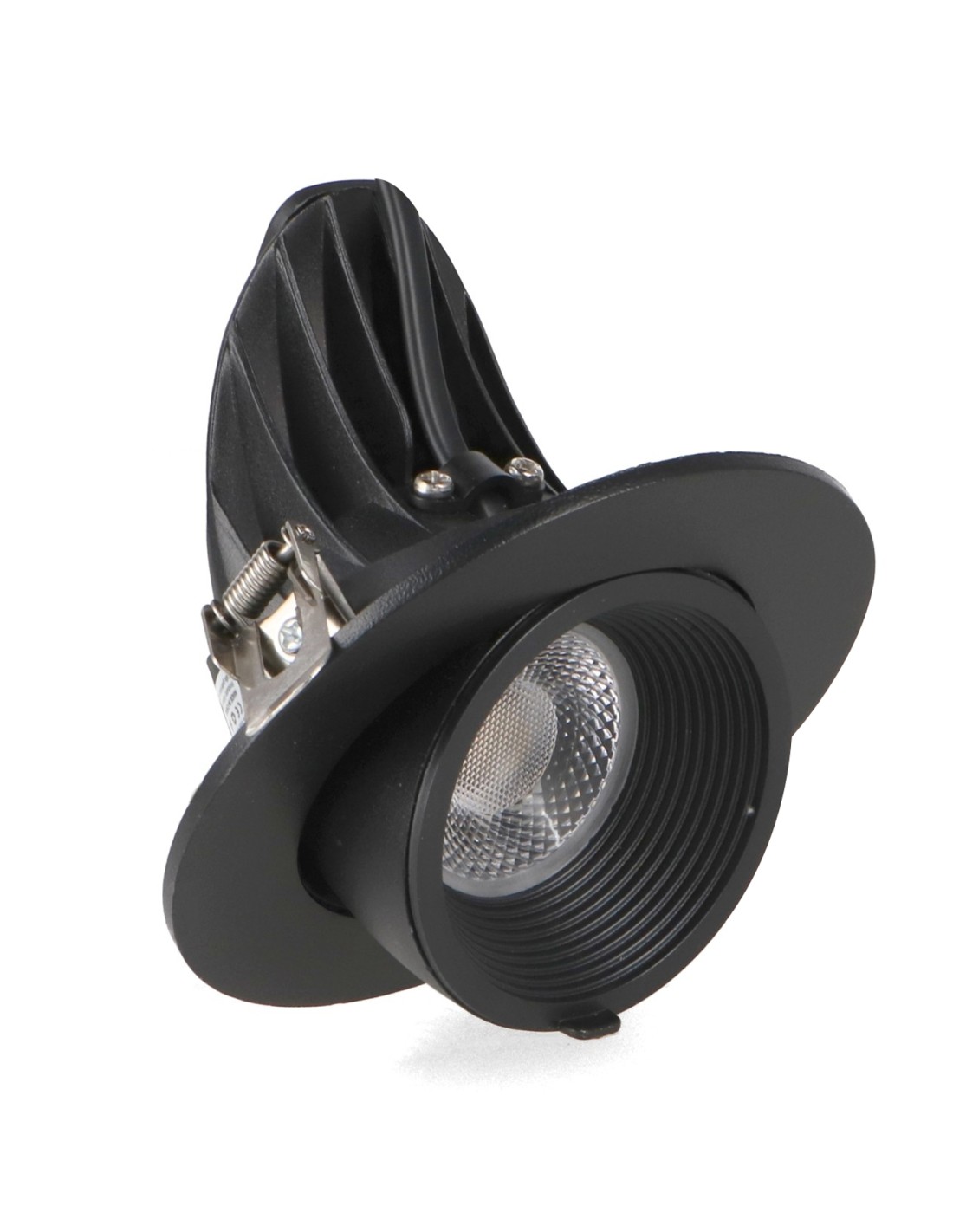

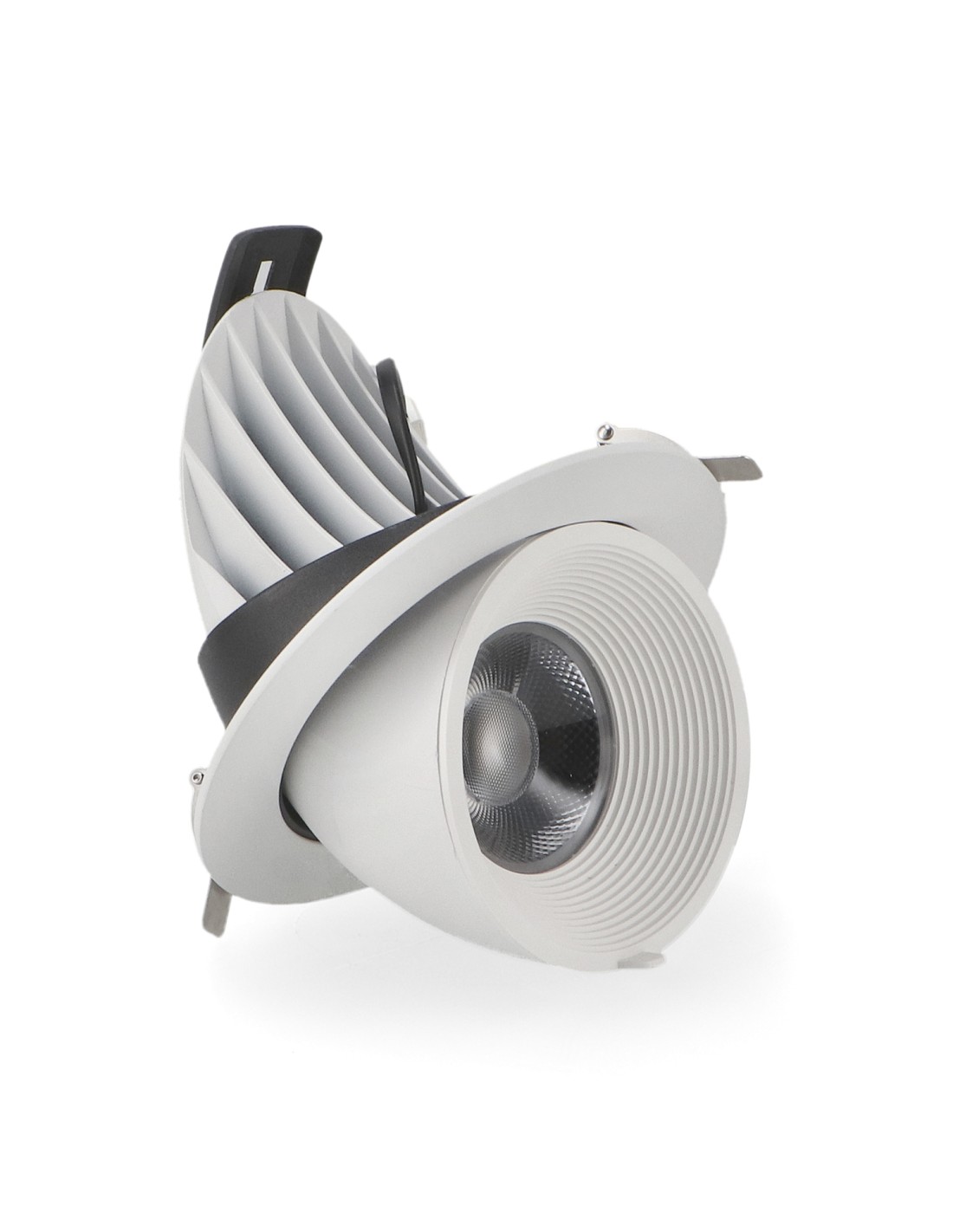

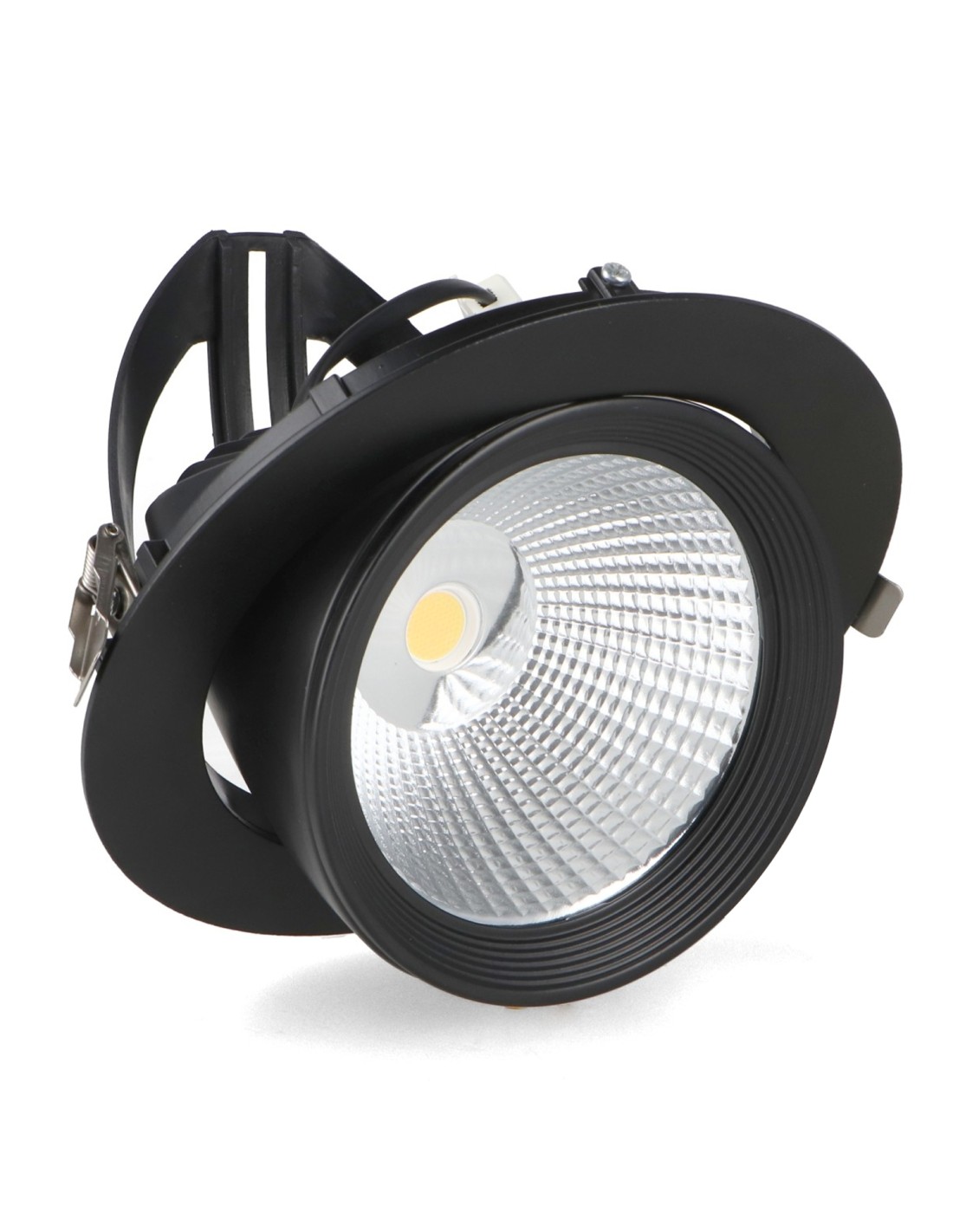

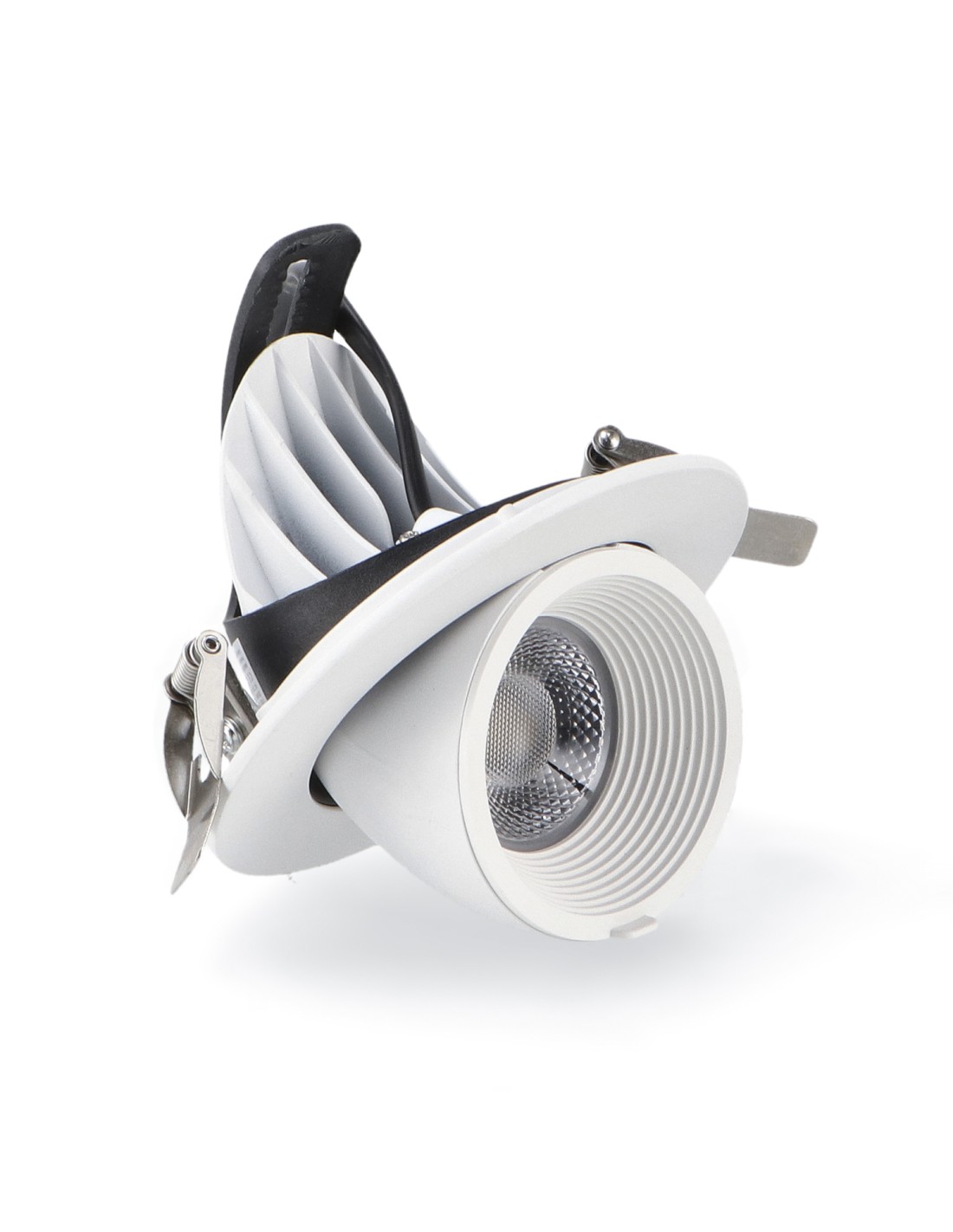

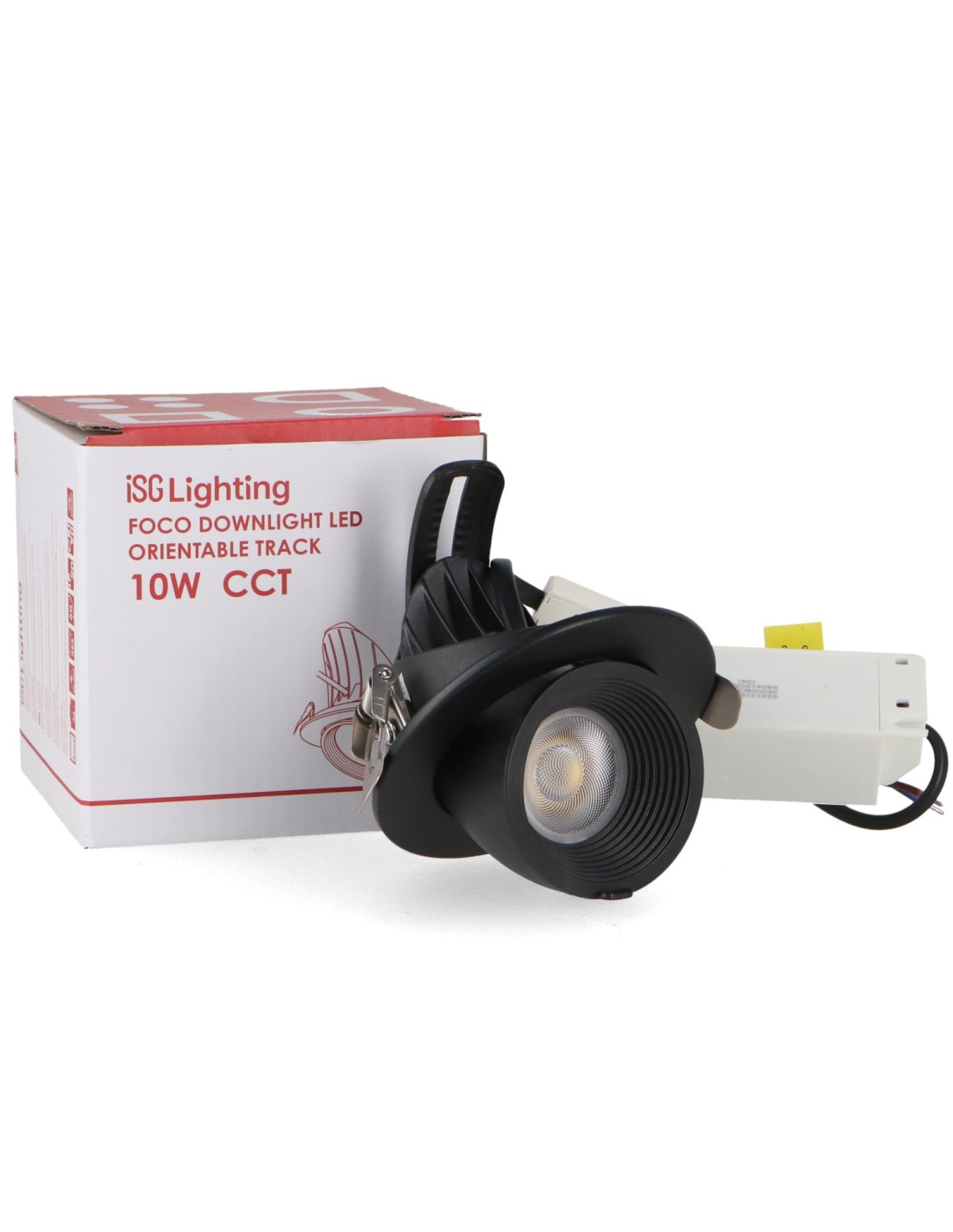

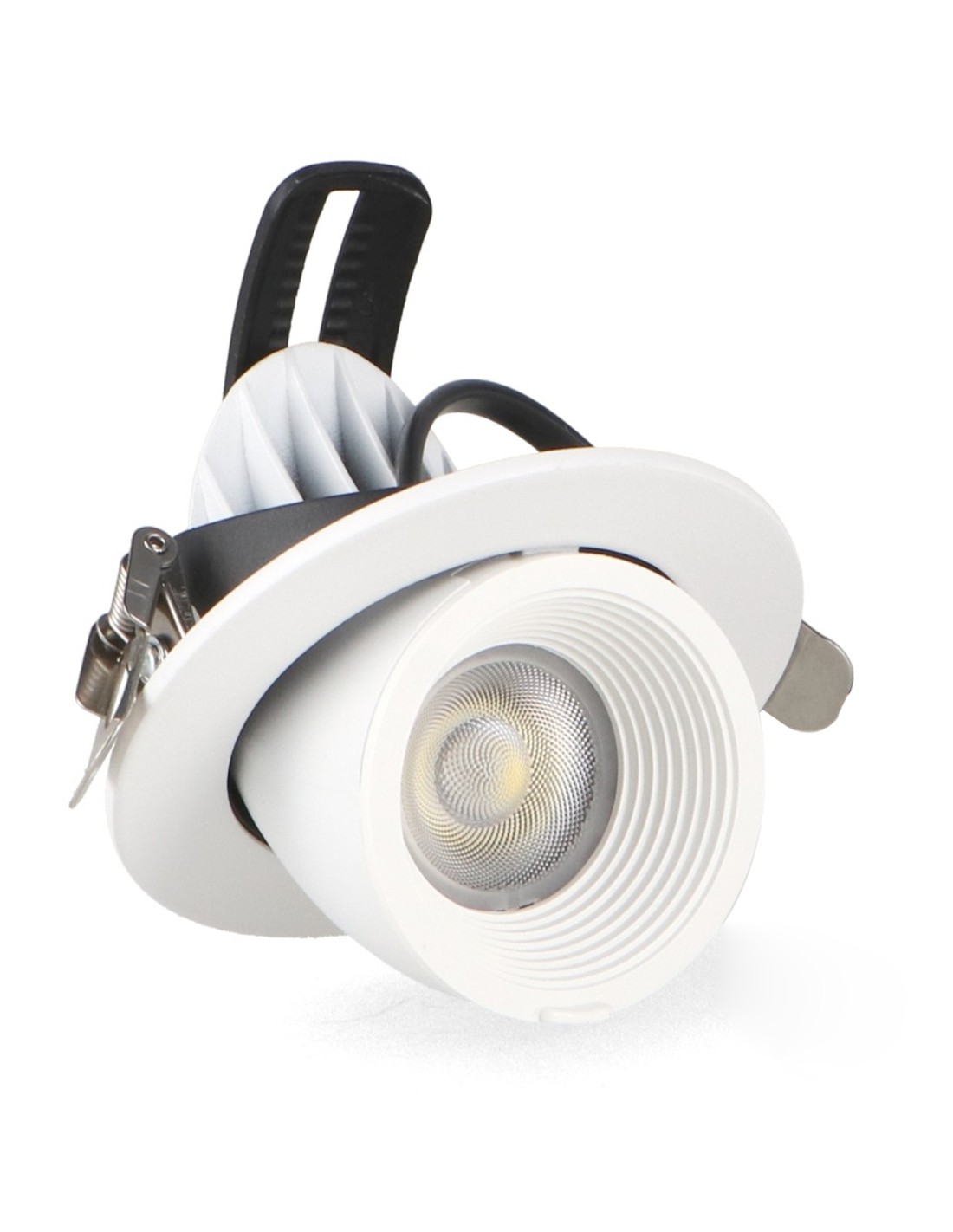

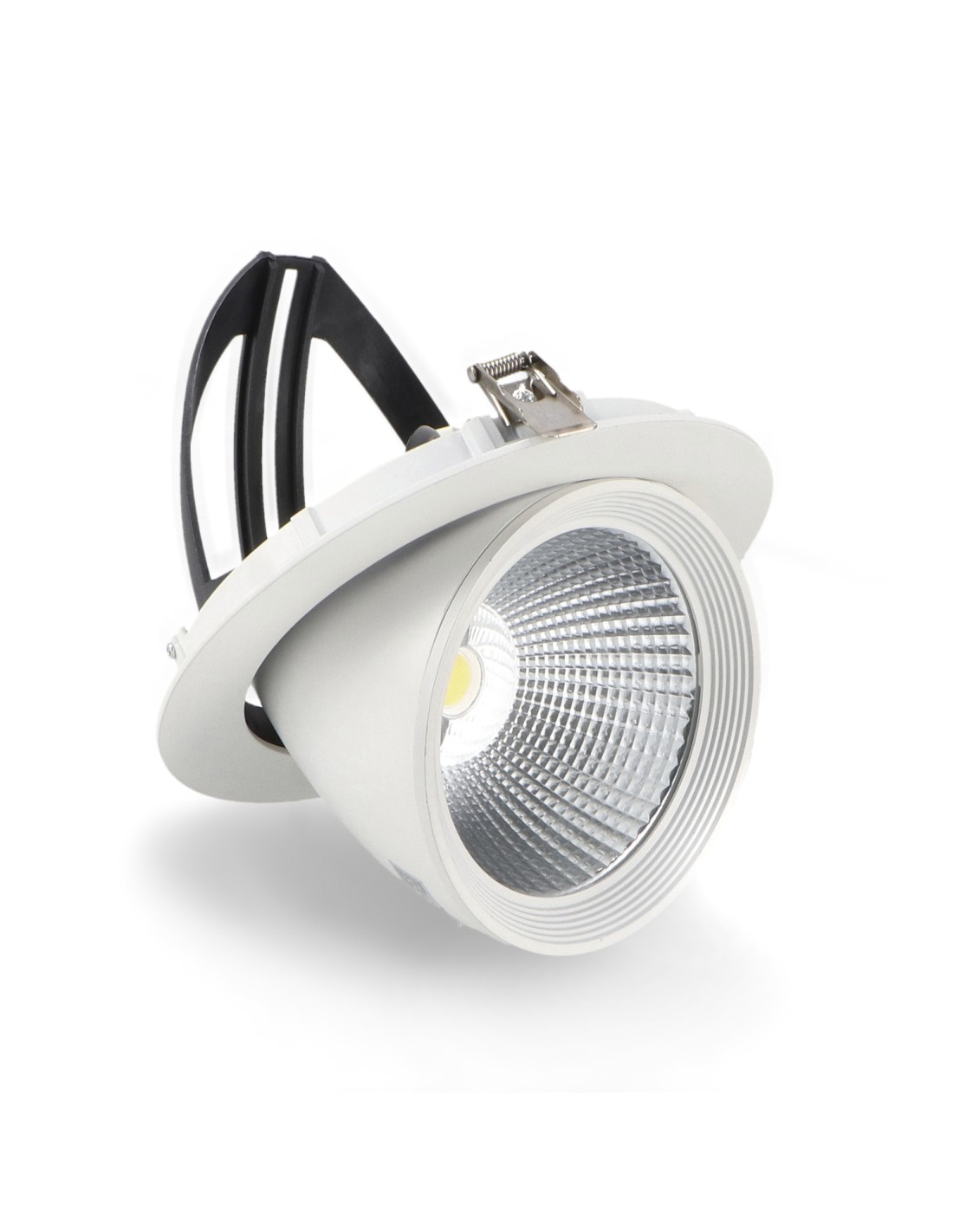

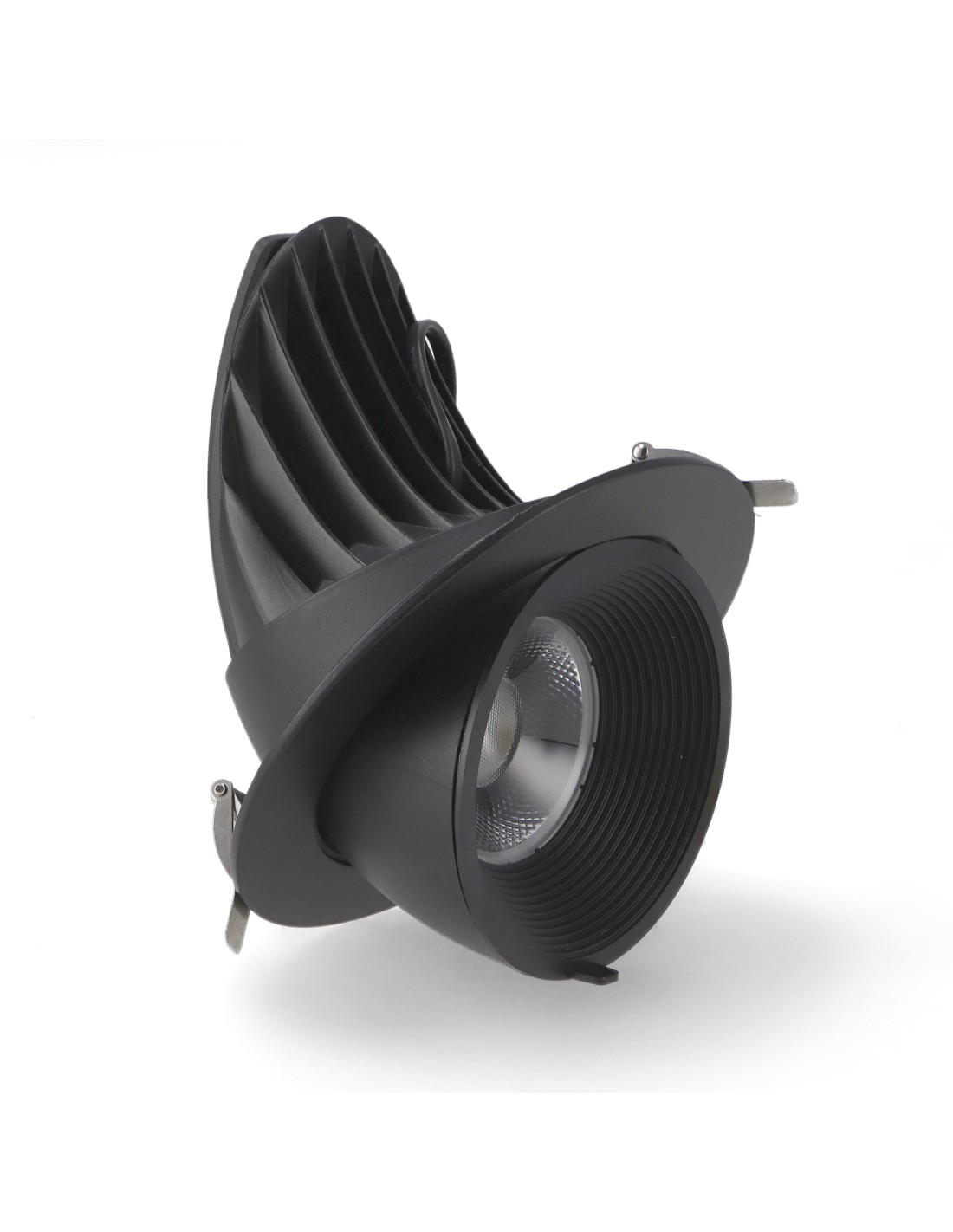

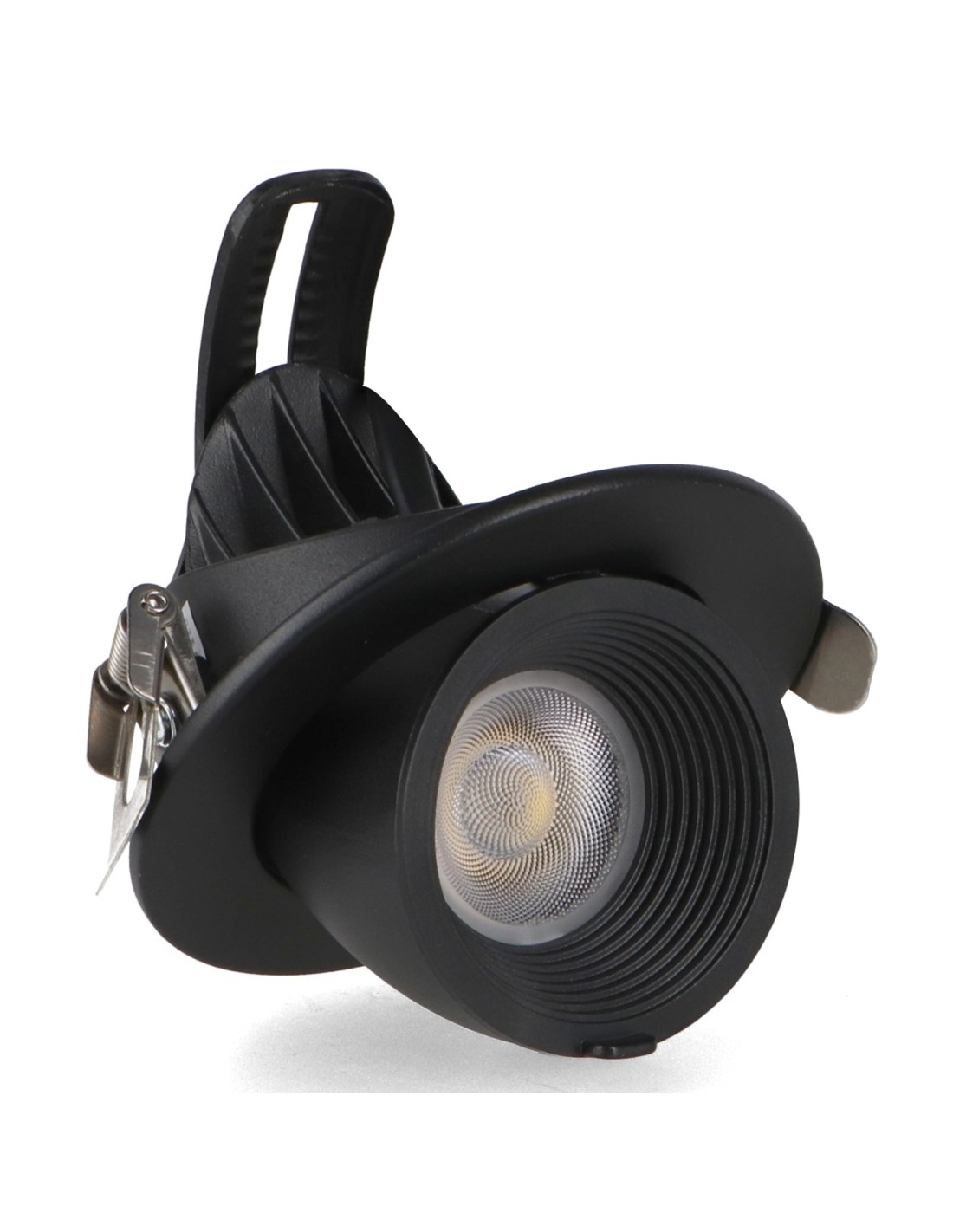

Adjustable LED Downlight Black Track 10W CCT

The iSG Lighting Black Track Focus Downlight Led Orientable is a recessable lighting system designed to deliver efficient lighting performance and discreet aesthetic integration into ceilings. Its construction in aluminium and glass guarantees durability, while its orientable design allows to direct the light accurately according to the needs of the space.

Technical characteristics

• Trademark: iSG Lighting
• Power: 10 W
• Light source: Epistar
• Lightness: 1200 lm
• Light efficiency: 120 lm/W
• Working temperature: -20°C ~ +45°C
• Beam angle: 36°
• Lifetime: 50,000 hours
• IP protection: IP20
• Protection class IK: 6
• Electrical insulation class: II
• Overvoltage protection: 4 kV
• Power supply: 220-240 V AC
• Installation: Empotrable

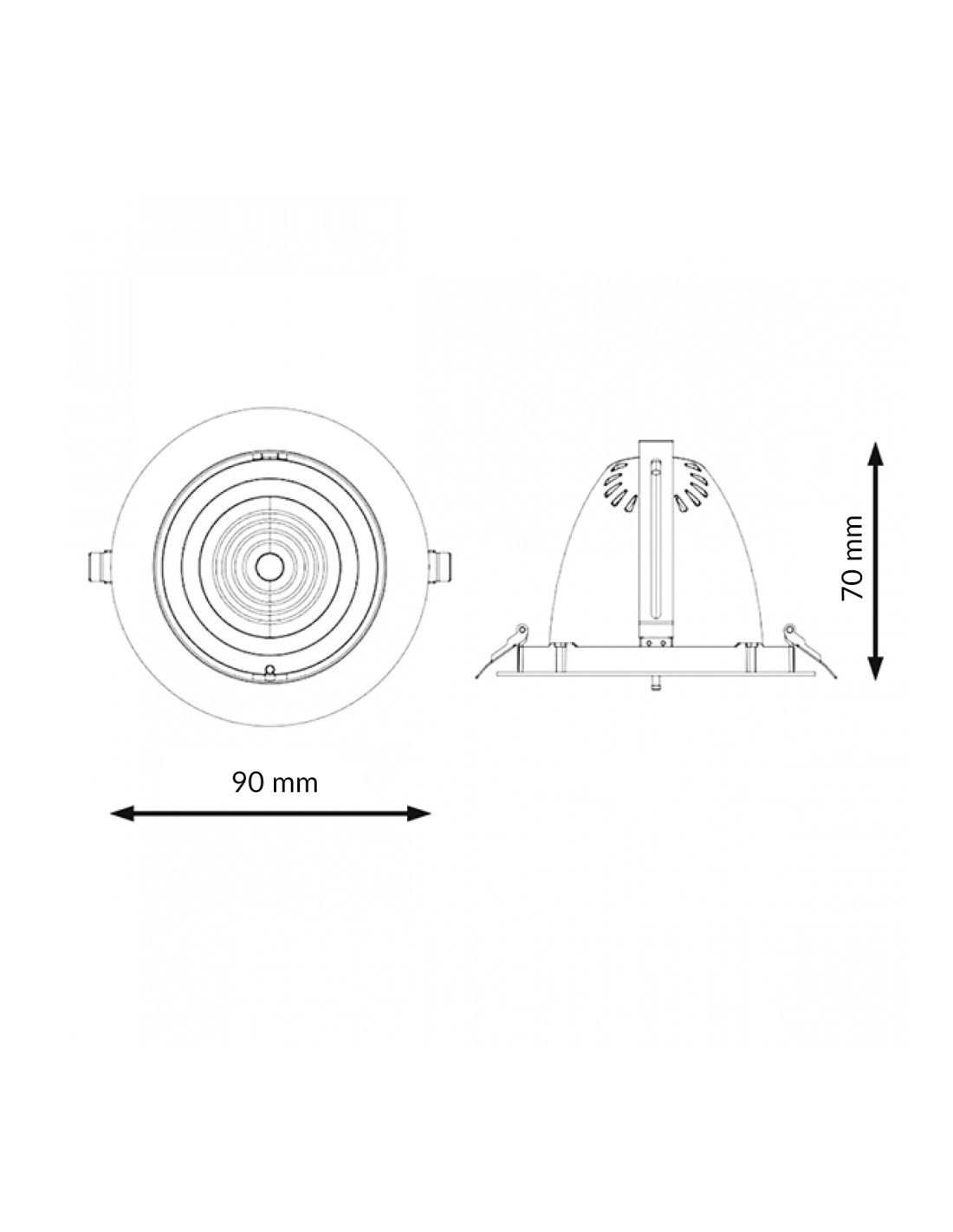

• Total dimensions: 90x70 mm (H)
• Cutting dimension: 75 mm
• Materials: Aluminium and Crystal
• Driver: Lifud
• chromatic reproduction index (CRI): 90
• UGR: <19
• Power factor: 0.9
• Regulatory: Optional
• Color temperature: 3CCT
• Guarantee: 5 years

With a UGR index below 19 and high light efficiency, this focus provides uniform lighting ideal for environments that require strict dazzling control. Its wide range of color temperatures (3CCT) and the regulation option make it a versatile solution adaptable to different visual atmospheres.

The installation requires a 75 mm cut on the roof for recessing, taking advantage of the aluminium sink to maintain stable operating temperatures within the specified range from -20°C to +45°C.
