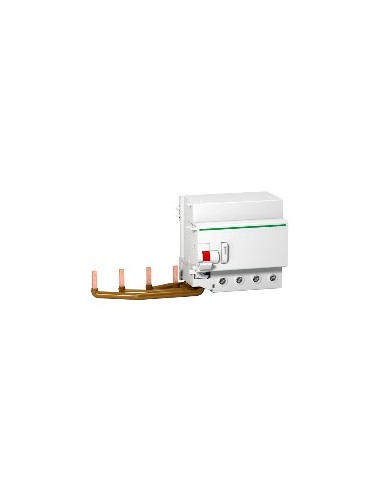

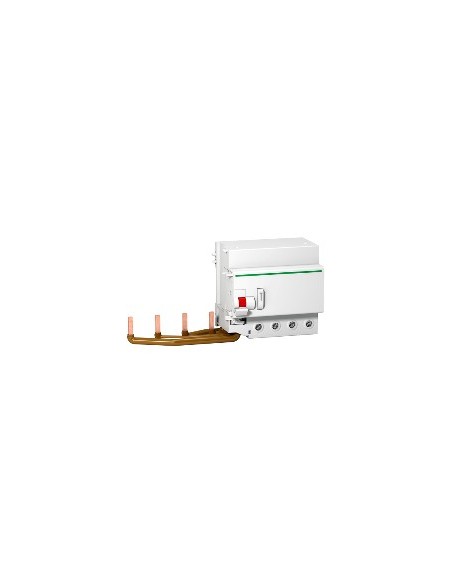

Adjustable 4P 125A 30mA AC Residual Current Device
Adjustable 4P 125A 30mA AC Residual Current Device

Adjustable 4P 125A 30mA AC Residual Current Device

Available In stock 100 Items Reference IMPO A9N18542
€338.73
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20
  • Colour White

C120 4P Residual Current Device with nominal current of 125 A, earth leakage sensitivity of 30 mA, type AC, for AC networks 50/60 Hz, 400...415 V. Instantaneous tripping independent of voltage, DIN 35 mm rail mounting, screw connection, compatible with tunnel-type terminals, IP20 protection rating, suitable for installations in small commercial premises.

Description

C120 4P Residual Current Device with nominal current of 125 A, designed to protect electrical installations in small commercial environments.

Technical Features

  • Number of poles: 4P
  • Nominal current [In]: 125 A
  • Network type: AC
  • Earth leakage sensitivity: 30 mA
  • Protection delay: Instantaneous
  • Protection class: Type AC
  • System location: Output
  • Network frequency: 50/60 Hz
  • Rated operating voltage [Ue]: 400...415 V AC 50/60 Hz
  • Rated insulation voltage [Ui]: 500 V AC 50/60 Hz in accordance with EN > 40 A
  • Impulse withstand voltage [Uimp]: 6 kV in accordance with EN > 50 A
  • Tripping technology: Voltage-independent
  • Mounting type: Adjustable clip
  • Mounting support: Symmetrical 35 mm DIN rail
  • Electrical connection to MCB: Screw terminals
  • Spacing: 9 mm
  • Height: 95 mm
  • Width: 198 mm
  • Depth: 73 mm
  • Weight: 0.58 kg
  • Color: White
  • Mechanical durability: 20000 cycles
  • Terminals: Tunnel-type terminals 1…35 mm² flexible, 1…50 mm² rigid
  • Cable stripping length: 15 mm
  • Tightening torque: 3.5 N·m
  • Compatibility: Terminal
  • Standards: EN 61009
  • Protection rating IP: IP20
  • Contamination degree: 3 in accordance with EN > 50 A
  • Operating ambient temperature: -5…60 °C
  • Storage ambient temperature: -40…60 °C
  • REACH Regulation: Does not contain SVHC
  • EU RoHS Directive: Compliant
  • Mercury-free: Yes
  • RoHS Exemptions: Yes
  • China RoHS Regulation: Product outside the scope of China RoHS
  • Waste Electrical and Electronic Equipment (WEEE): Must be disposed of according to specific system in the EU

Product Details

Dimensiones

Depth 73 mm
Weight (kg) 0,58 kg

Eléctrico

Rated voltage 400
Rated current (A) 125

Protección

Protection IP20

Otras

Frequency 50/60 Hz
Class AC
Sensitivity 30 mA
EAN 3606480376184
Manufacturer SCHNEIDER
No. of poles 4P
Reference IMPO A9N18542
Cable cross-section (mm²) 35 mm²
Colour White

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO A9N18542
EAN 3606480376184
100 Items
