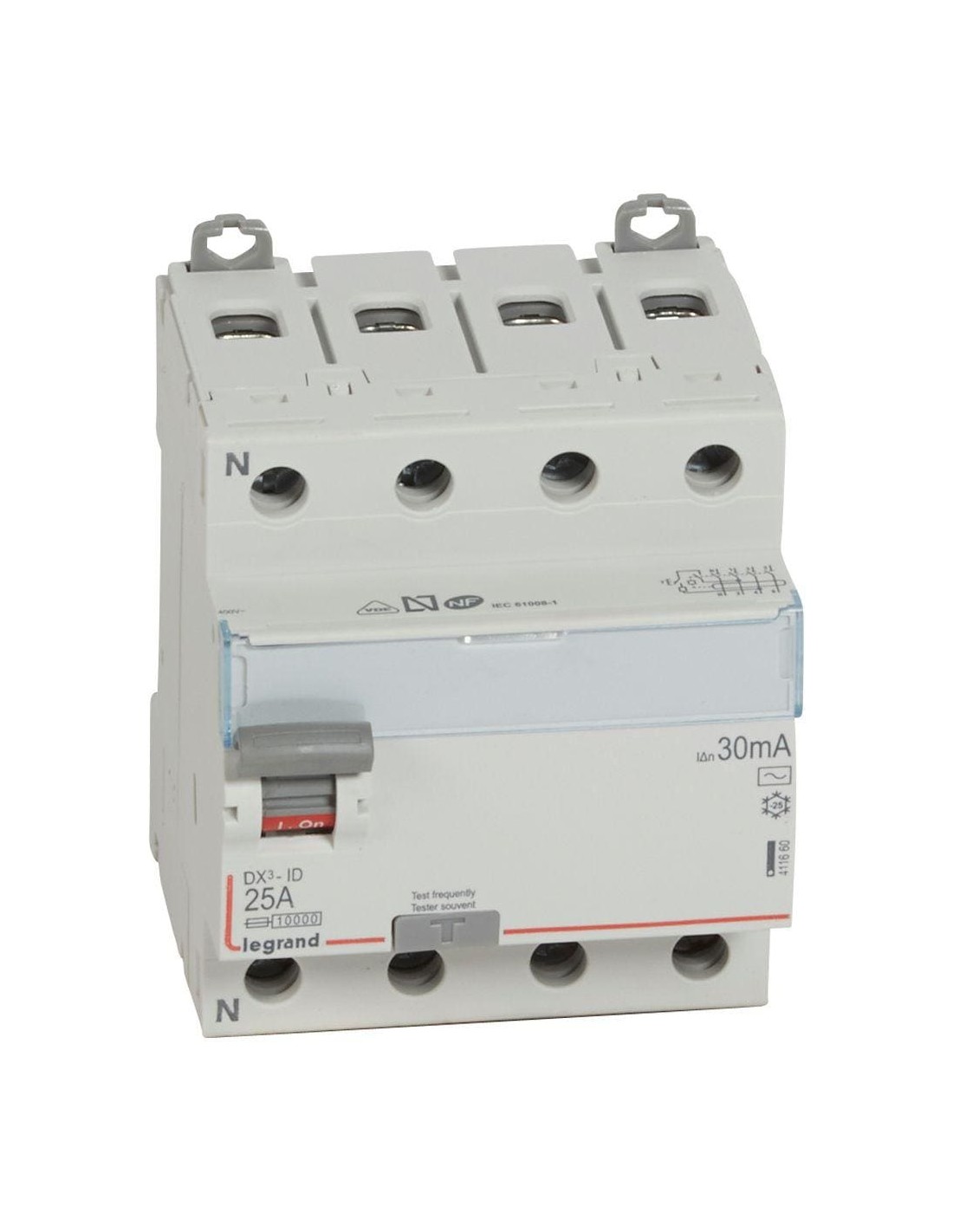

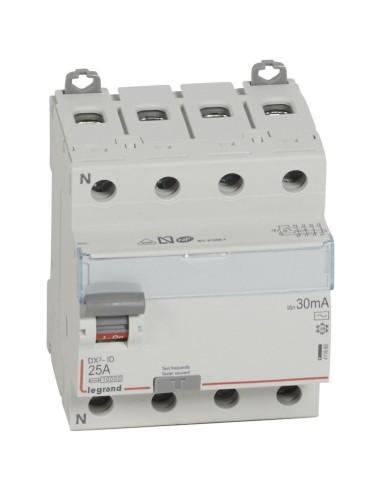

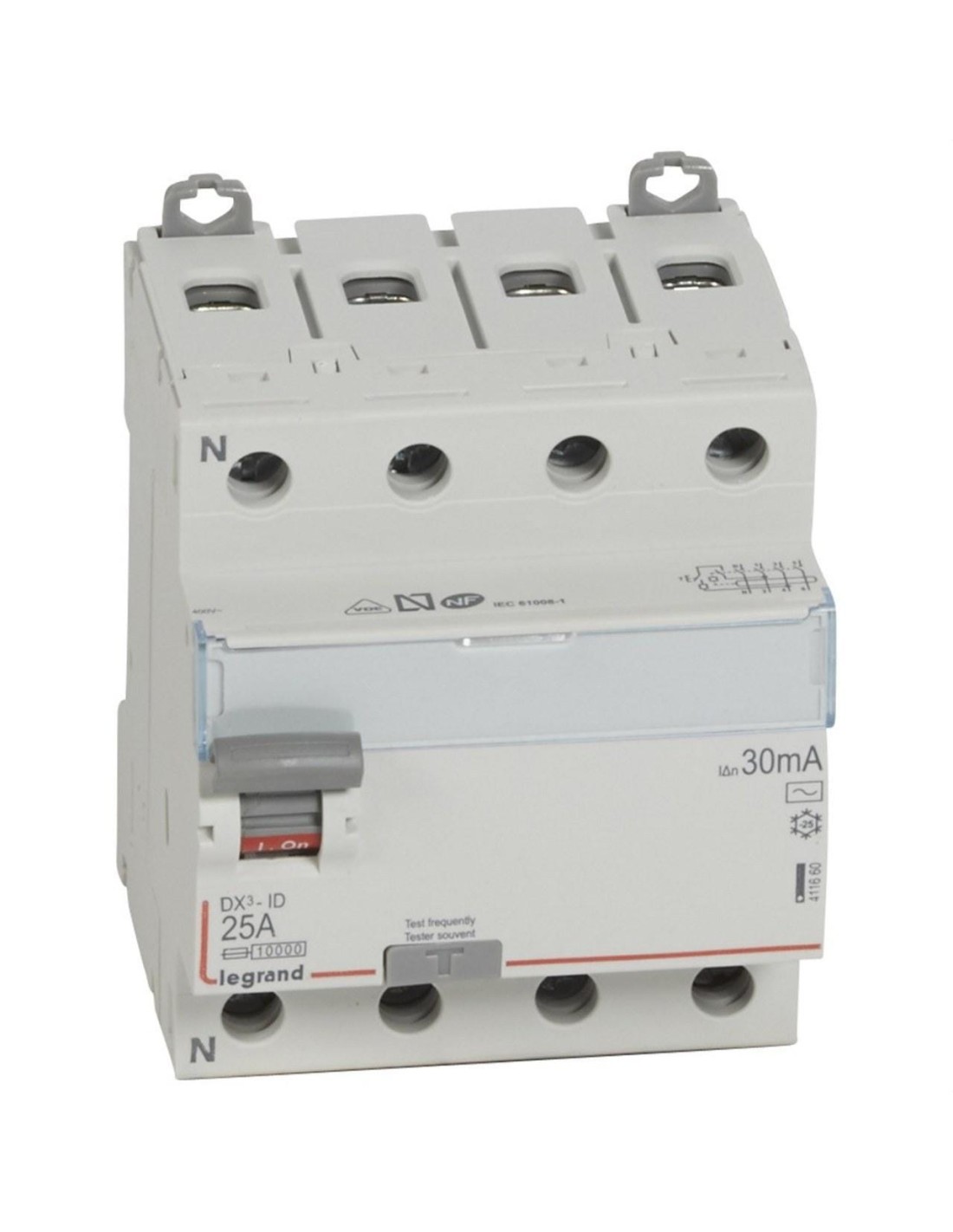

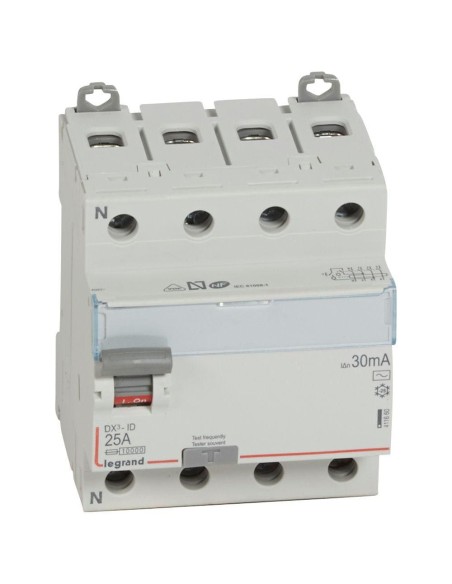

4-pole residual current device for 400 V and 25 A, with 30 mA Type AC sensitivity. Protects against direct and indirect contact and fire risks due to earth faults. DIN rail mounting, 10 kA short-circuit breaking capacity, and 500 V nominal insulation.
Description
4-pole residual current device designed to protect people against direct and indirect contact and prevent fire risks caused by earth fault currents. Operates on alternating current and provides a reliable response to electrical leakage.
This device ensures safety in alternating current electrical installations, allowing the connection of additional equipment and facilitating maintenance thanks to its locking system. Its compact 4-module design optimizes space in electrical panels.
Product Details
| Long | 4 módulos |
|---|---|
| Depth | 44 mm |
| Nominal voltage (V) | 400 V |
|---|---|
| Rated voltage | 400 |
| Current type | AC |
| Rated current (A) | 25 |
| Protection | IP20 |
|---|
| Frequency | 50 |
|---|---|
| Class | AC |
| Sensitivity | 30 mA |
| Curve | C |
| EAN | 3245064116602 |
| Manufacturer | LEGRAND |
| No. of poles | 4P |
| Reference | LEGRAND 411660 |
| Cable cross-section (mm²) | 35 mm² |
| Colour | Grey |
