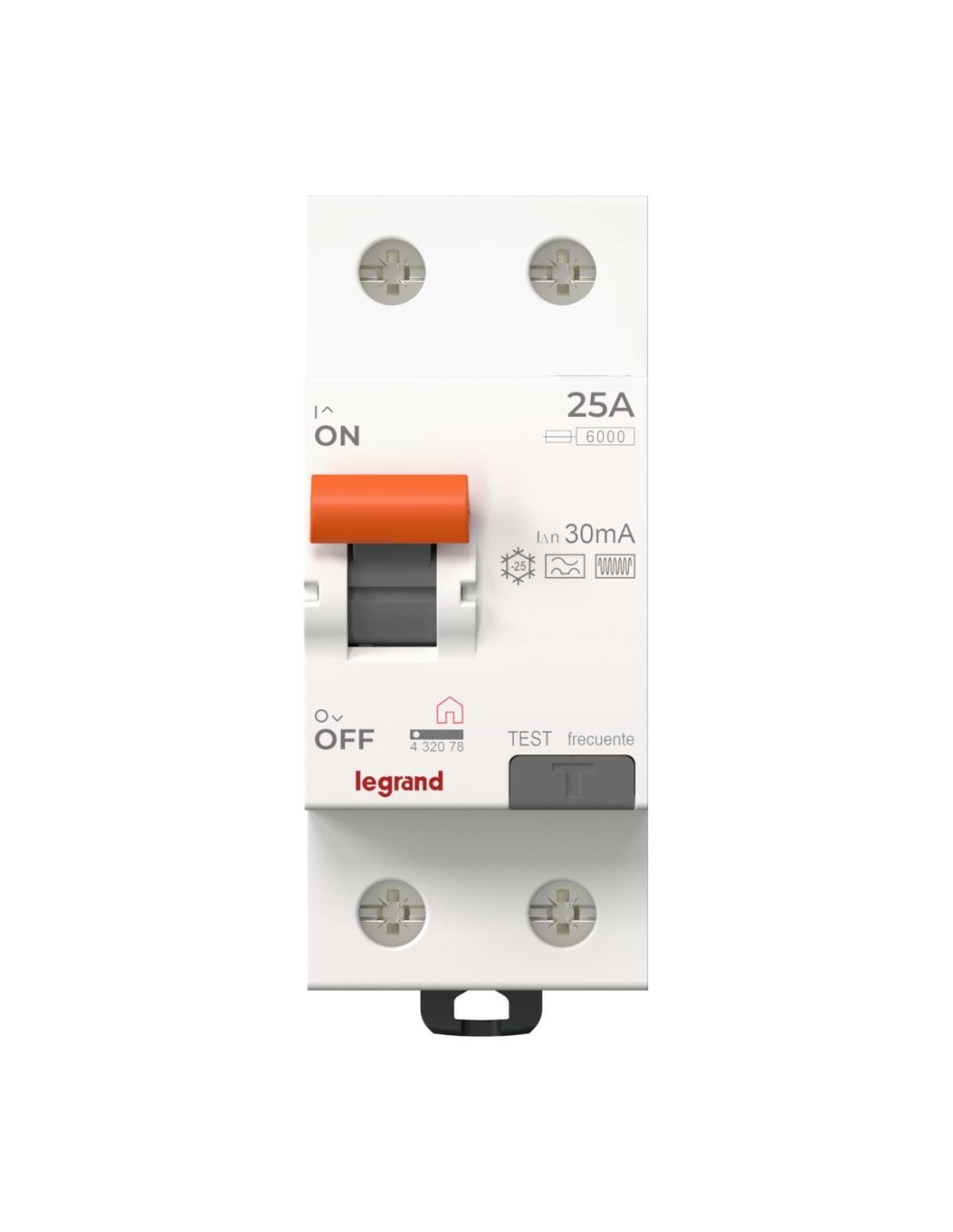

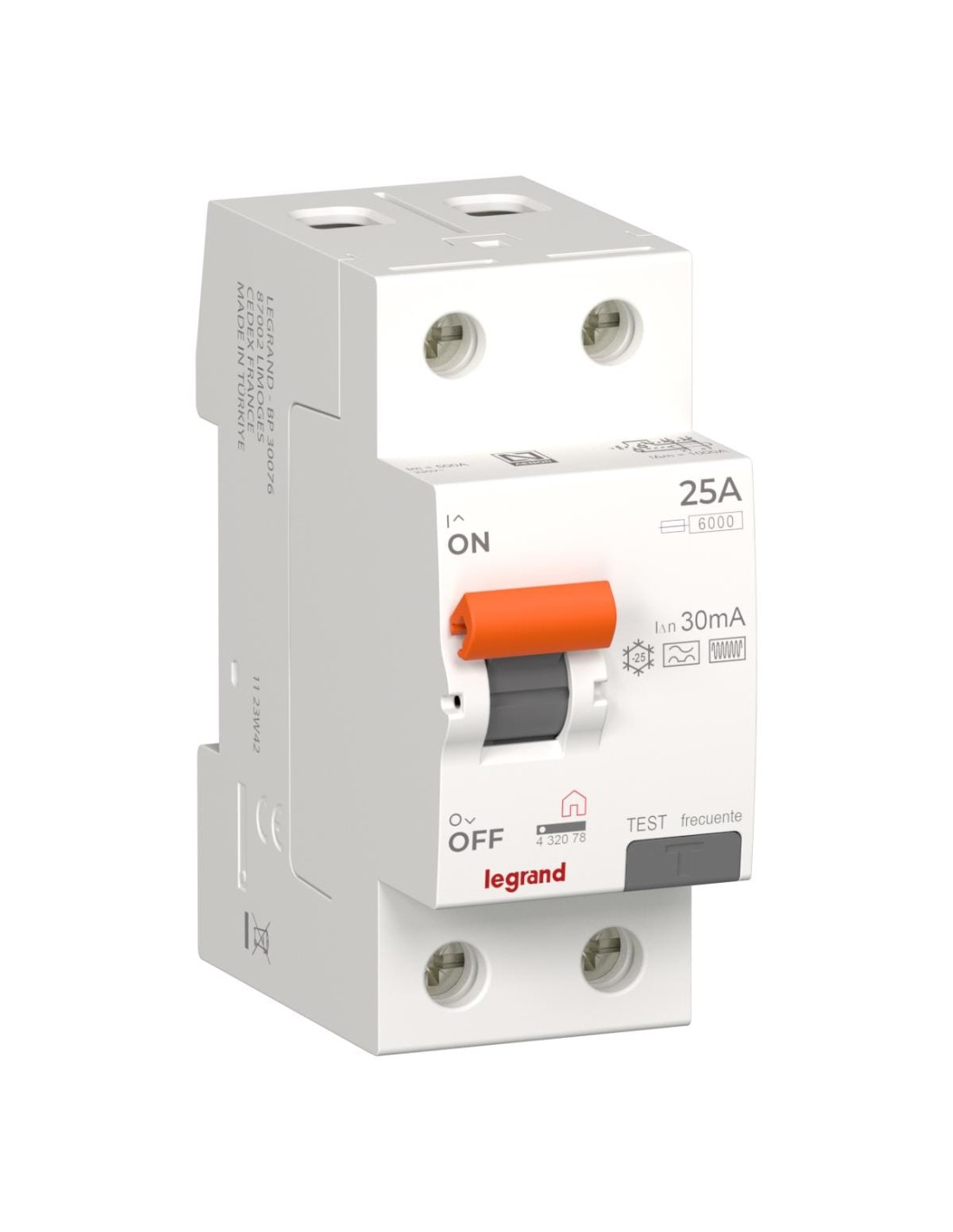

Differential switch 2P 25 A 30 mA type F

Differential switch 2P 25 A 30 mA type F

Differential switch 2P 25 A 30 mA type F

Differential switch 2P 25 A 30 mA type F

Differential switch 2P 25 A 30 mA type F

Available In stock 9 Items

Reference LEGRAND 432078

€45.73

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

2-pole residual current device for 230 V~ and 25 A with 30 mA Type F sensitivity. DIN rail mounting, 10 kA short-circuit capacity, and IP20 protection rating. Designed to protect against direct and indirect contact and fire risks caused by earth faults.

Description

2-pole residual current device designed to protect people against direct and indirect contact and prevent fire risks caused by persistent earth fault currents.

Technical features

Rated current: 25 A
Tripping sensitivity: 30 mA
Nominal voltage: 230 V AC
Frequency: 50 Hz
Leakage current type: F
Short-circuit capacity (Icw): 10 kA
Overcurrent withstand: 0.25 kA
Impulse rating Uimp: 4 kV
Insulation voltage Ui: 250 V
Protection rating: IP20
Mounting: DIN rail
Width: 2 modules
Depth: 44 mm
Operating temperature: -25...60 °C
Conductor cross-section: 0.75...35 mm² (multiple) / 0.75...50 mm² (solid)
Padlock facility: Yes
Color: White

This device provides a fast response to leakage currents, ensuring the safety of installations and compliance with basic electrical regulations.

Product Details

Eléctrico

Nominal voltage (V)	230
Rated voltage	230
Rated current (A)	25

Protección

Protection	IP20

Otras

Frequency	50
EAN	3414973045482
Manufacturer	LEGRAND
Reference	LEGRAND 432078
Cable cross-section (mm²)	35 mm²

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 432078
EAN	3414973045482

Advertencias de seguridad

No

In stock 9 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
