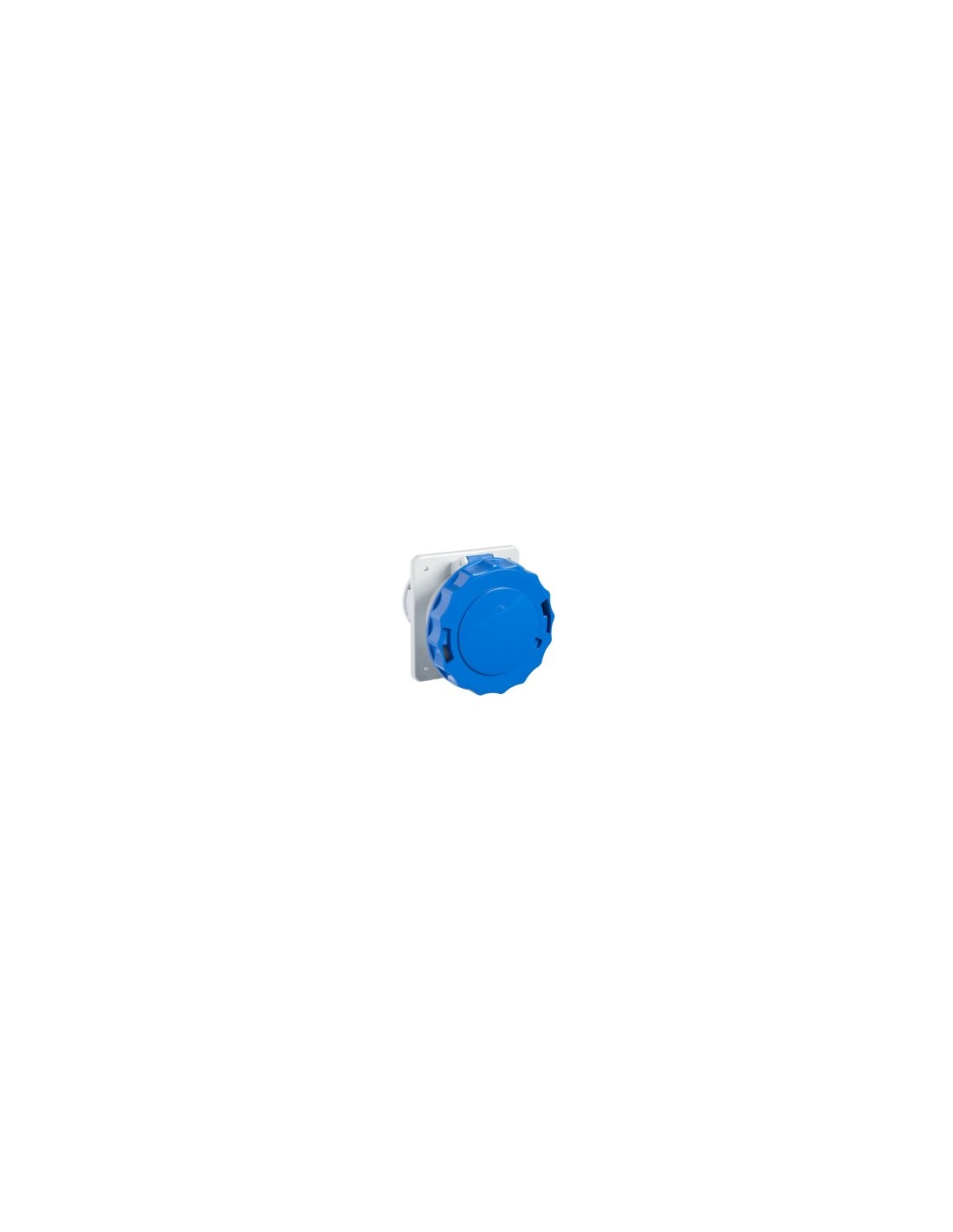

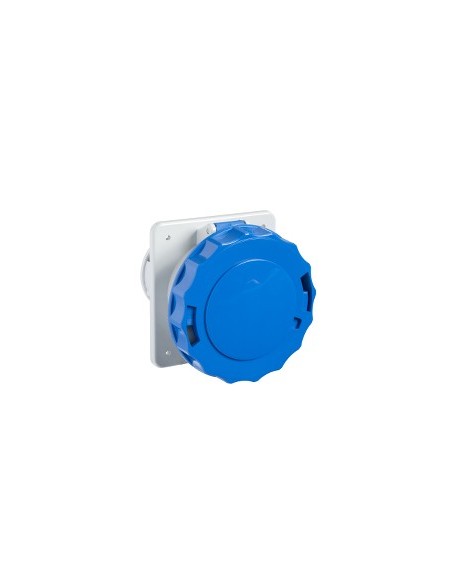

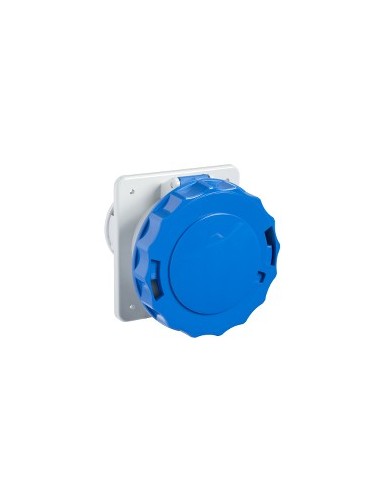

Surface Mount 63 A 2P+E IP67 Grey

Surface mount 63 A 2-pole T 200-250 V IP67, designed for industrial applications with panel mounting. Compatible with international standards, provides a secure and durable connection in demanding environments.

Technical Features

• Number of poles: 2P+E
• Power supply type: AC
• Output standard: Industrial
• Rated operating voltage: 200...250 V
• Rated current: 63 A
• Supply frequency: 50/60 Hz
• Earth terminal position clockwise: 6 o'clock
• Housing material: Engineering self-extinguishing polymer
• Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
• Connections: Captive screws, fully loosened
• Cable cross-section: 6…25 mm²
• Protection degree IP: IP67 according to IEC 60529
• Impact protection degree IK: IK08 according to EN 62262
• Fire resistance: 850 °C according to IEC 60695-2-11
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Operating ambient temperature: 35 °C (86400 s)
• Color: Grey (RAL 7035)
• Voltage color code: Blue
• Standards: EN 60309-1, EN 60309-2
• Product weight: 0.424 kg
• Base dimensions: 325 x 175 x 120 mm
• Height: 107 mm
• Width: 108 mm
• Depth: 113 mm
• Compatibility code: PratiKa Socket
• Sustainable offering status: Green Premium Product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Outside scope
• RoHS Exemptions: Yes
• Mercury-free: Yes
