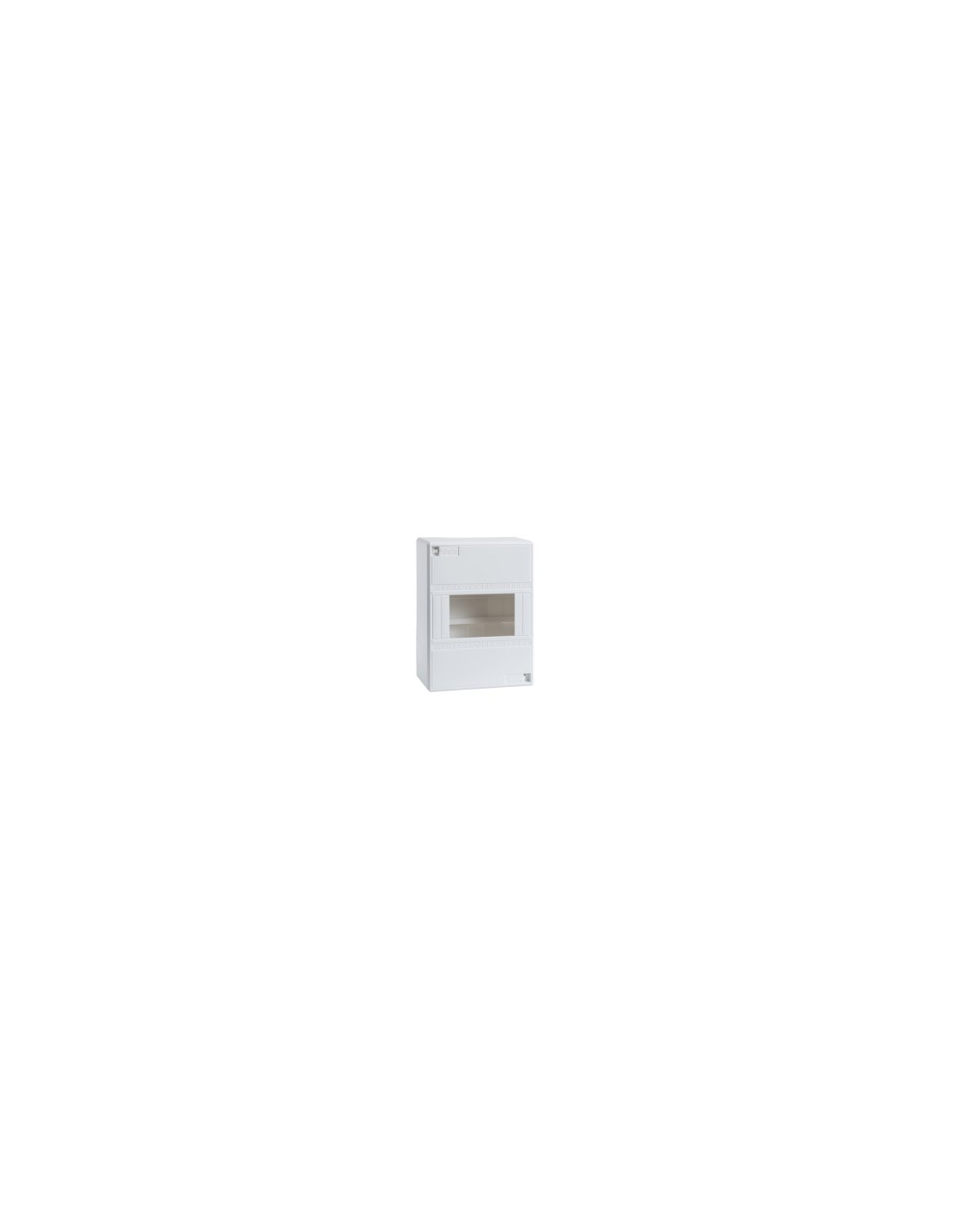

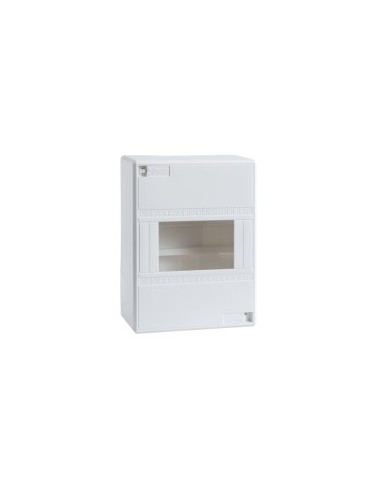

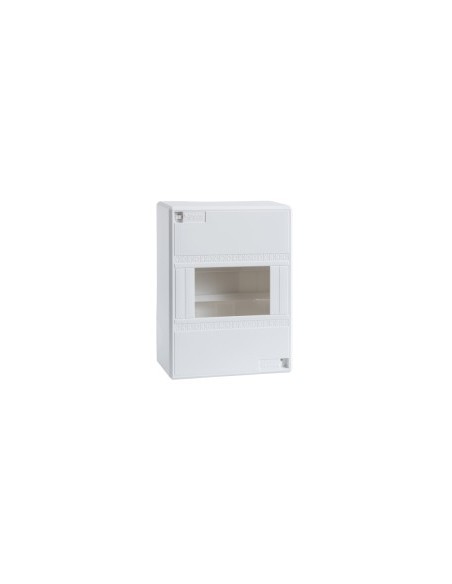

Mini Opale 16P 8MOD White Distribution Box

Mini Opale 16P 8MOD is a cabinet-type distribution box from the Mini power zone range, designed for surface electrical installations. It is intended to house components in a controlled environment, with a compact and safe structure, ideal for industrial or commercial applications requiring efficient power distribution.

Technical features

• Number of 18 mm modules per row: 8
• Total number of 18 mm modules: 8
• Number of horizontal rows: 1
• 9 mm steps: 16
• Nominal current [In]: 63 A
• Rail type: DIN
• Supplied equipment: 2 terminal blocks
• Terminal block holding capacity: 4 outputs
• Distribution block outputs: 2 x 16 mm², 6 x 10 mm²
• Housing material: Self-extinguishing
• Color: White RAL 9003
• Protection degree IP: IP30 according to Activate/Deactivate Ig
• Protection degree IK: IK07 according to H
• Mounting: Surface
• Depth: 65 mm
• Internal depth: 60 mm
• Width: 155 mm
• Height: 160 mm
• Mounting plate description: No mounting plate
• Standards: H Activate/Deactivate Ig
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Proactive declaration (outside legal scope)
