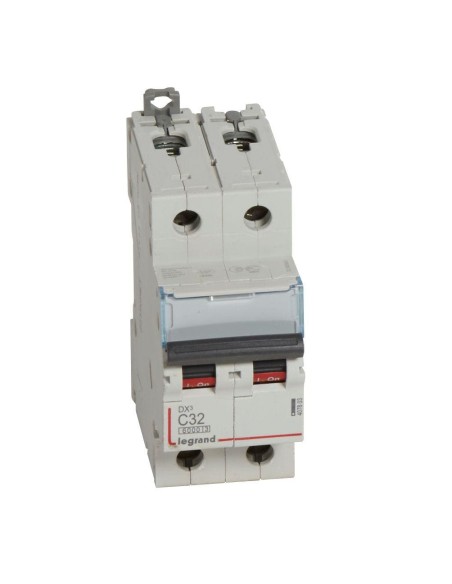

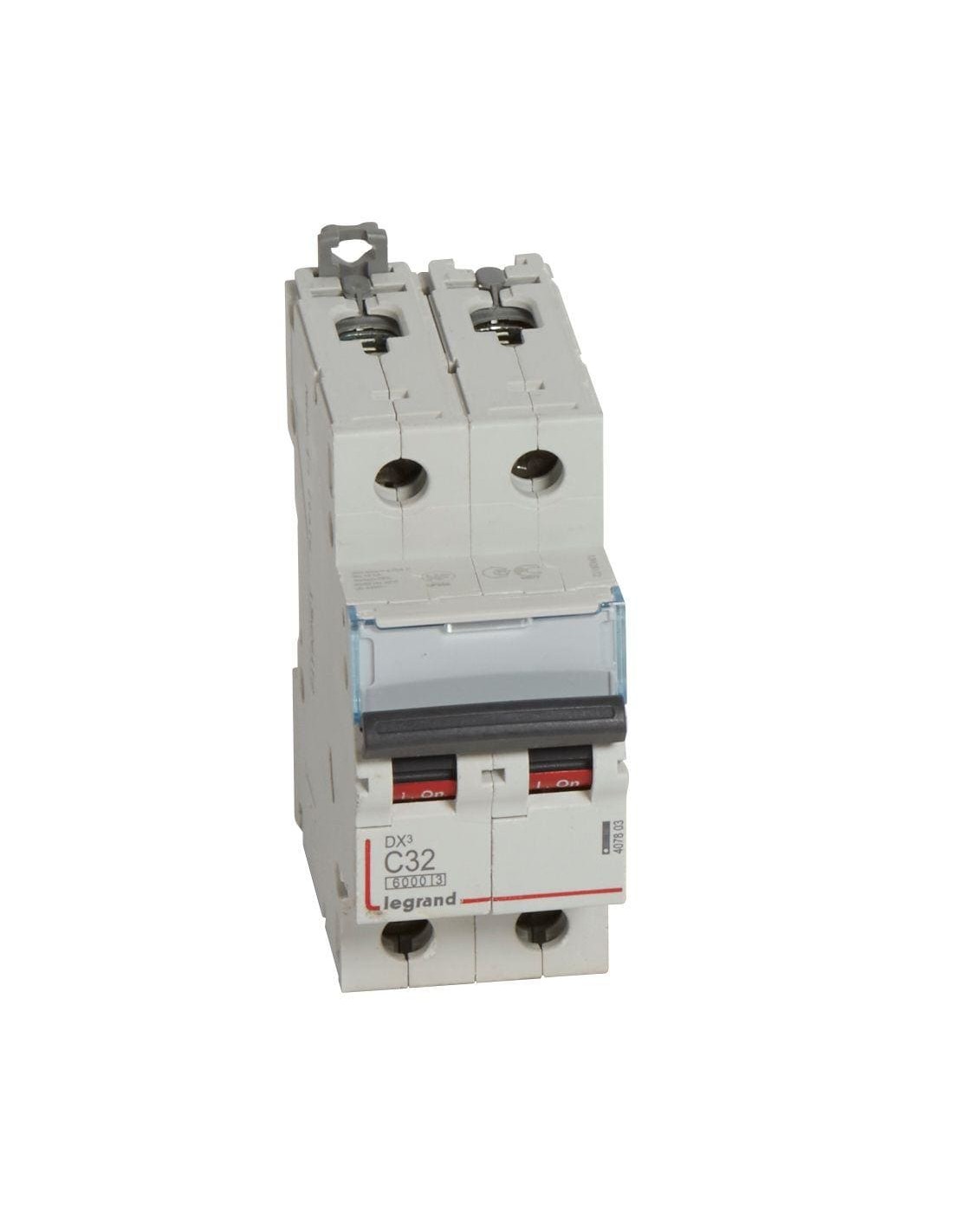

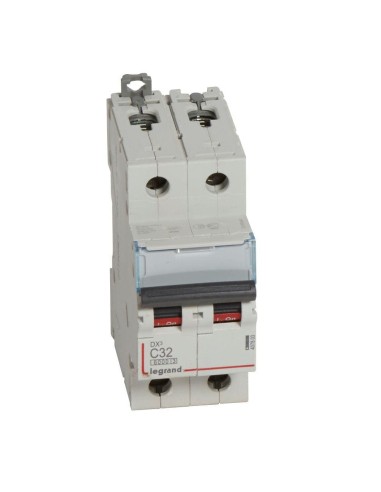

MCCB 2P 32A C Curve 10kA
MCCB 2P 32A C Curve 10kA

MCCB 2P 32A C Curve 10kA

Available In stock 13 Items Reference LEGRAND 407803
€31.69
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20

2-pole miniature circuit breaker with a rated current of 32 A and C tripping curve. Designed to protect installations against overloads and short circuits, with a breaking capacity of 10 kA at 230 V according to EN 60898. Its construction depth is 44 mm and it accepts cables from 1.5 to 35 mm².

Description

2-pole miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation, ensuring the safety of the circuit and users.

Technical features

  • Rated current: 32 A
  • Tripping curve: C
  • Rated voltage: 230/400 V~
  • Breaking capacity: 10 kA at 230V and 6 kA at 400V (EN 60898)
  • Breaking capacity: 25 kA at 230V and 10 kA at 400V (EN 60947-2)
  • Protection rating: IP20
  • Operating temperature: -25...70 °C
  • Cable cross-section: 1.5...35 mm² (rigid)
  • Width: 2 modules
  • Depth: 44 mm

This device offers a rapid response to electrical faults, protecting the infrastructure and connected equipment. Its compact design facilitates integration into standard distribution boards.

Product Details

Dimensiones

Depth 44 mm

Eléctrico

Rated current (A) 32

Protección

Protection IP20

Otras

Curve C
EAN 3245064078030
Manufacturer LEGRAND
No. of poles 2P
Reference LEGRAND 407803
Cable cross-section (mm²) 35 mm²

Información legal

Fabricante LEGRAND
Dirección C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email [email protected]
Teléfono +34 916561812
Referencia LEGRAND 407803
EAN 3245064078030
