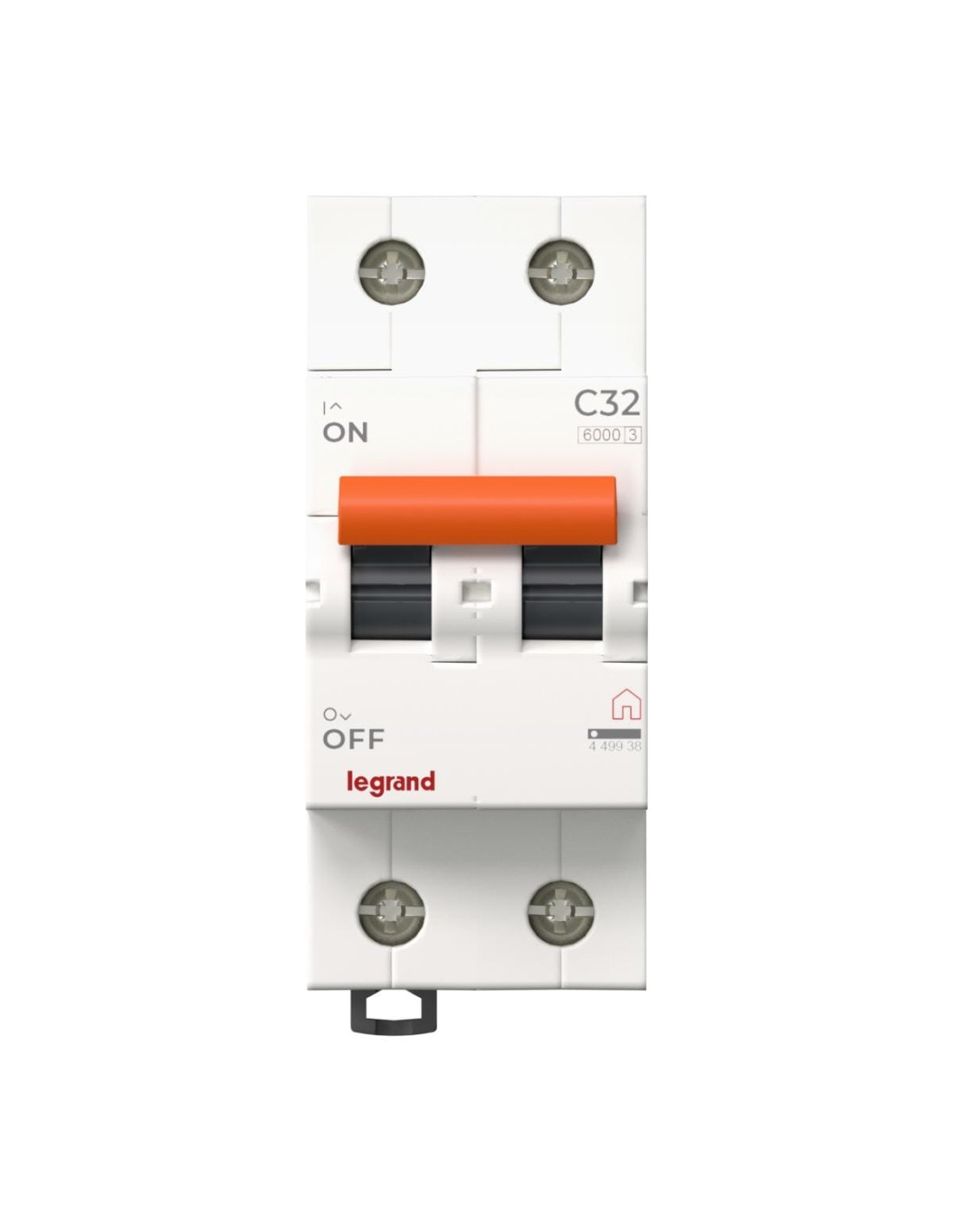

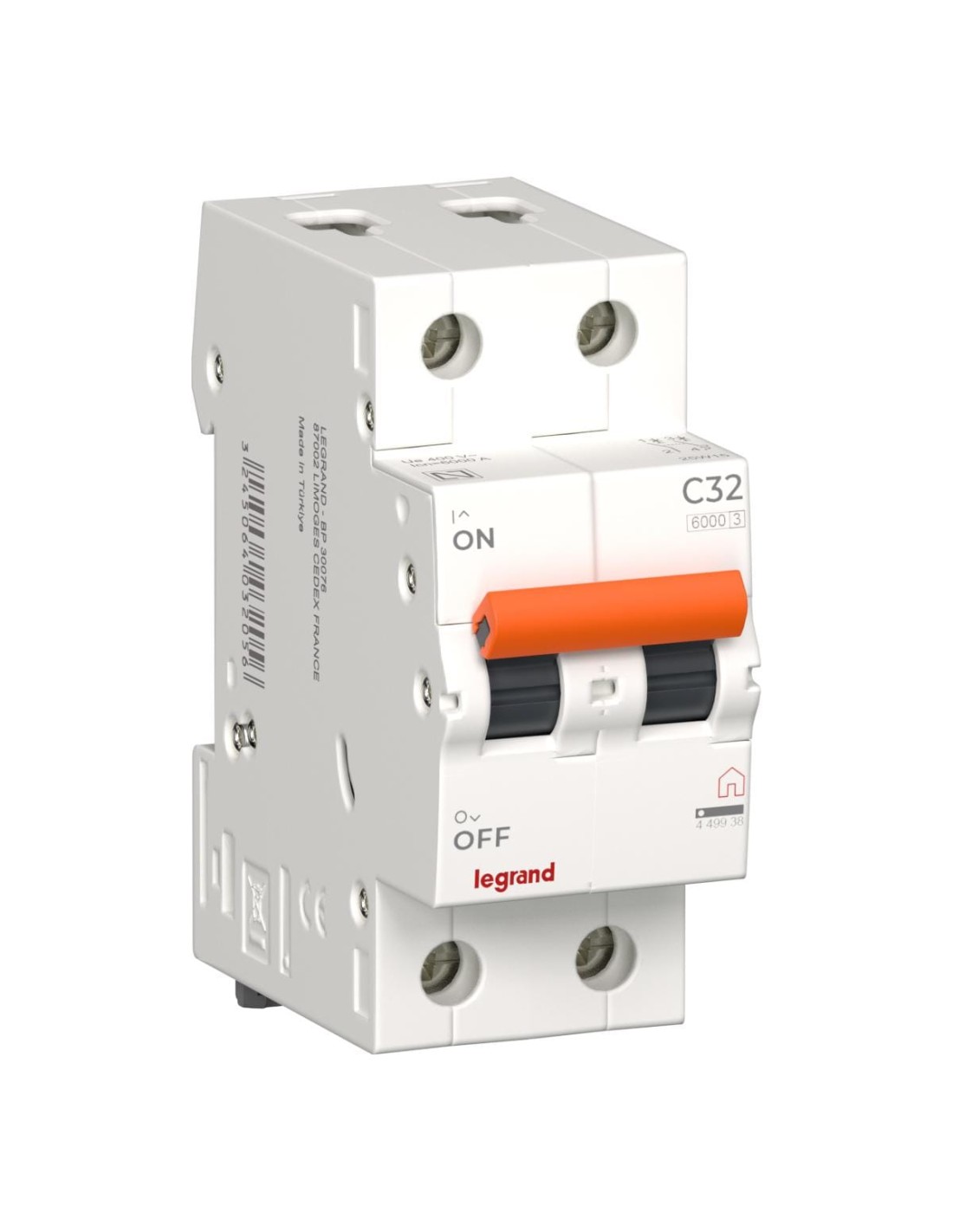

Circuit Breaker 2P 32A C Curve 230V 2 Modules

Circuit Breaker 2P 32A C Curve 230V 2 Modules

Circuit Breaker 2P 32A C Curve 230V 2 Modules

Circuit Breaker 2P 32A C Curve 230V 2 Modules

Circuit Breaker 2P 32A C Curve 230V 2 Modules

Available In stock 7 Items

Reference LEGRAND 449938

€8.70

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

2-pole miniature circuit breaker with a rated current of 32 A and C tripping curve. Protects installations against overloads and short circuits, with a breaking capacity of 10 kA at 230 V. Occupies 2 modules, has a depth of 44 mm and IP20 protection rating. Compatible with cables from 1.5 to 35 mm².

Description

2-pole miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation. Its compact design occupies 2 modules and is intended for flush mounting.

Technical features

Rated current: 32 A
Tripping curve: C
Nominal voltage: 230V~ / 400V
Breaking capacity: 10 kA at 230V and 6 kA at 400V (EN 60898)
Frequency: 50...60 Hz
Construction depth: 44 mm
Protection rating: IP20
Operating temperature: -25...70 °C
Cable cross-section: 1.5...35 mm² (rigid)
Current limiting class: 3

This device offers a reliable response to electrical faults, ensuring the safety of the network. Its high breaking capacity and C curve make it suitable for loads with moderate starting peaks.

Product Details

Eléctrico

Rated current (A)	32

Protección

Protection	IP20

Otras

Curve	C
EAN	3414972963718
Manufacturer	LEGRAND
No. of poles	2P
Reference	LEGRAND 449938

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 449938
EAN	3414972963718

Advertencias de seguridad

No

In stock 7 Items

Downloads

Product sheet Store PDF Download
