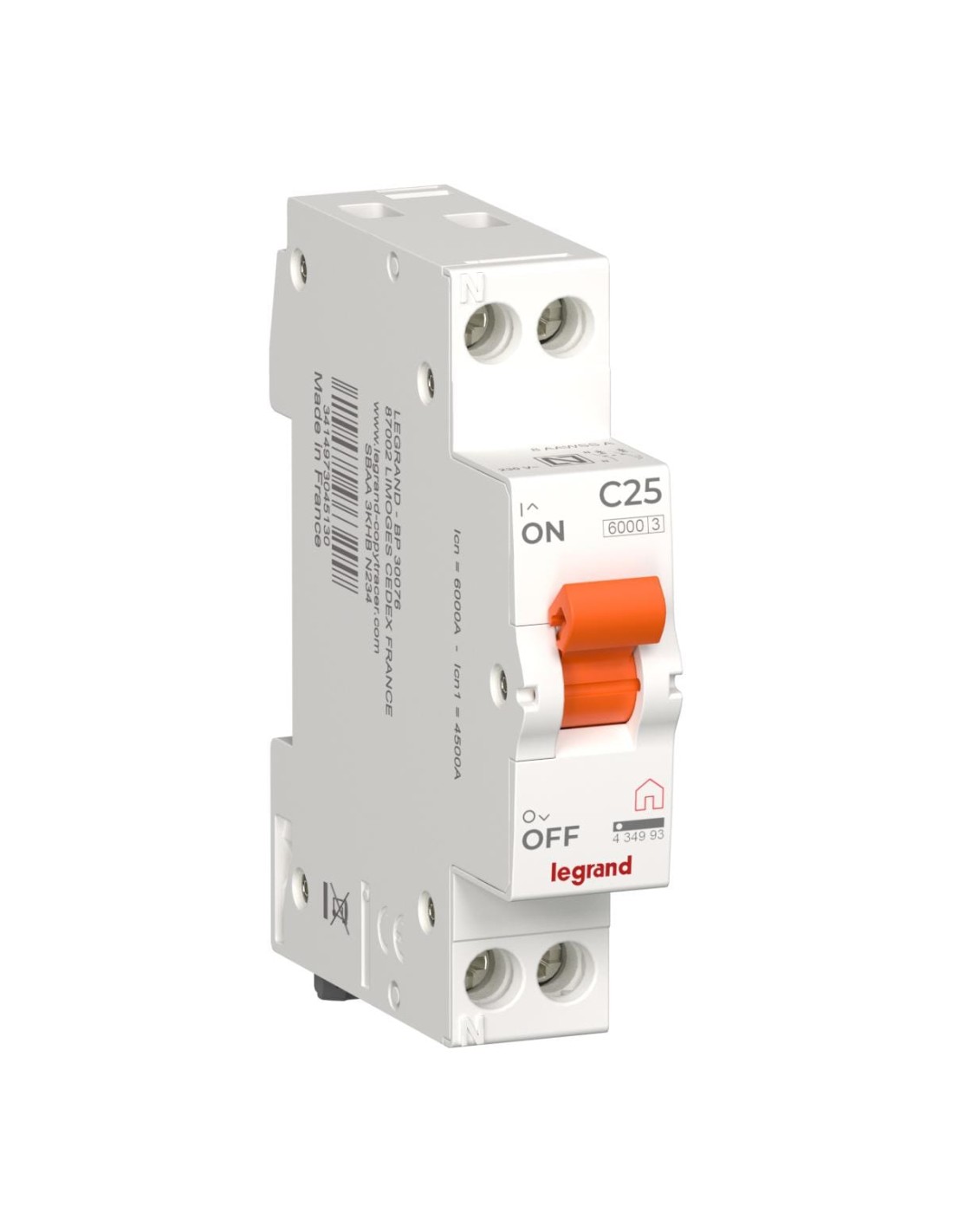

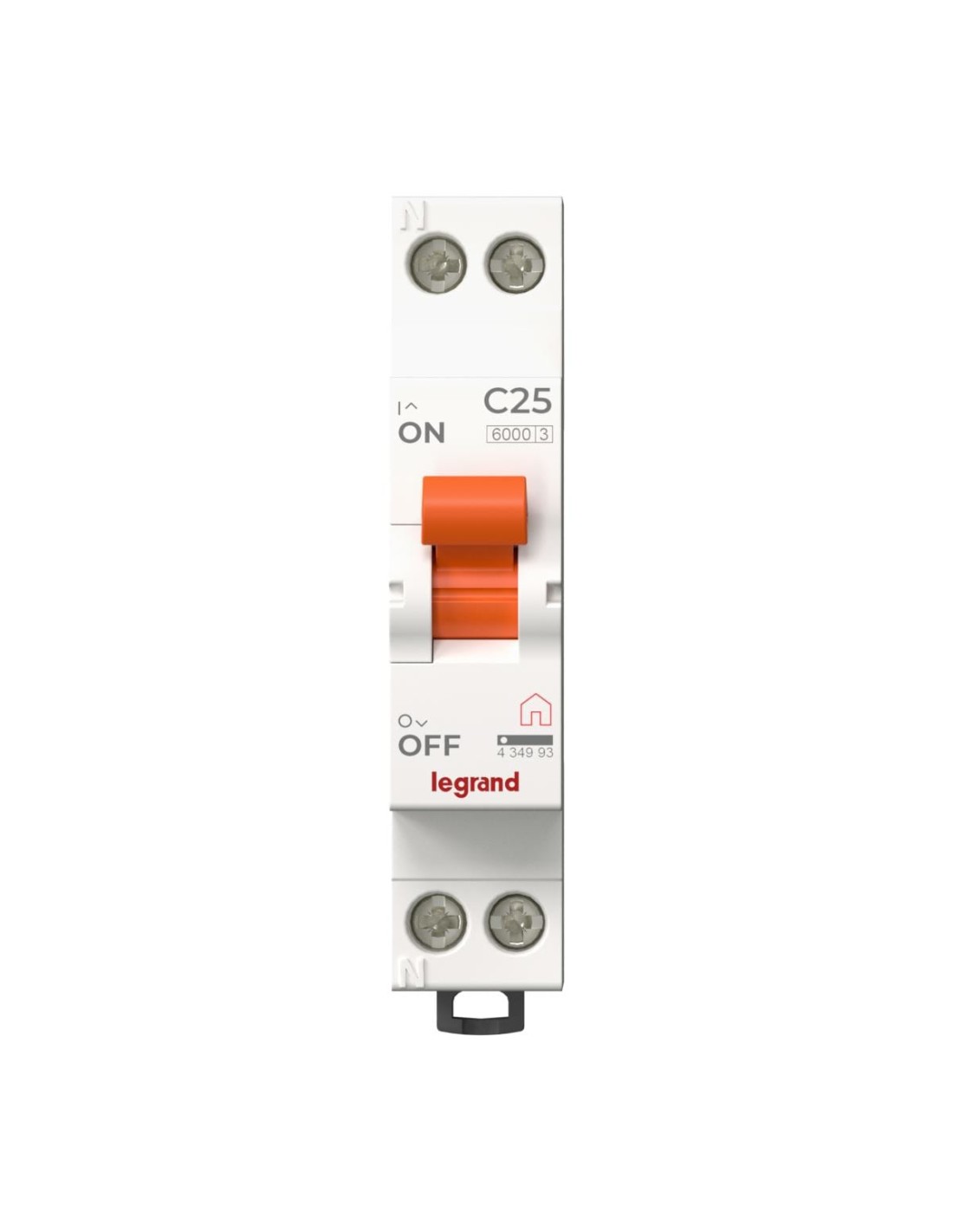

MCB 1P+N 25A C-curve 230V 1 module

1-module miniature circuit breaker (MCB) designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the line, offering a compact and functional solution for electrical panels.

Technical features

• Rated current: 25 A
• Nominal voltage: 230 V AC
• Trip curve: C
• Number of poles: 1P+N (2 total poles, 1 protected)
• Breaking capacity: 6 kA according to EN 60898
• Maximum impulse voltage (Uimp): 4 kV
• Width: 1 module
• Construction depth: 44 mm
• Protection rating: IP20
• Operating temperature: -25...70 °C
• Conductor connection: 0.75...10 mm² (multi-strand) and 0.75...16 mm² (solid)
• Simultaneous switching of neutral: Yes
• Current limitation class: 3

This device guarantees a precise response to electrical faults thanks to its C trip curve and high breaking capacity. Its 1-module design facilitates integration into standard panels, while the simultaneous switching of the neutral ensures complete isolation of the installation.
