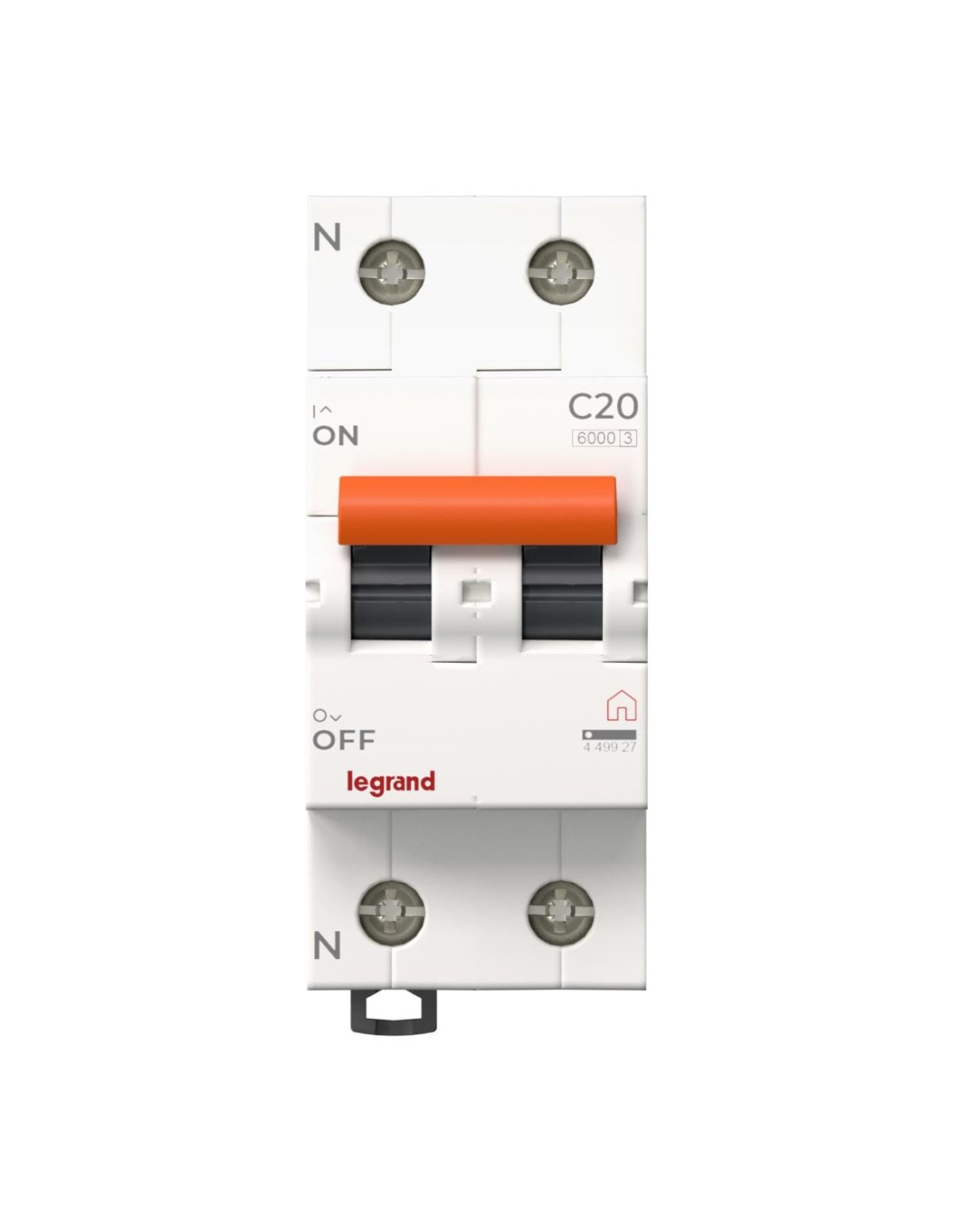

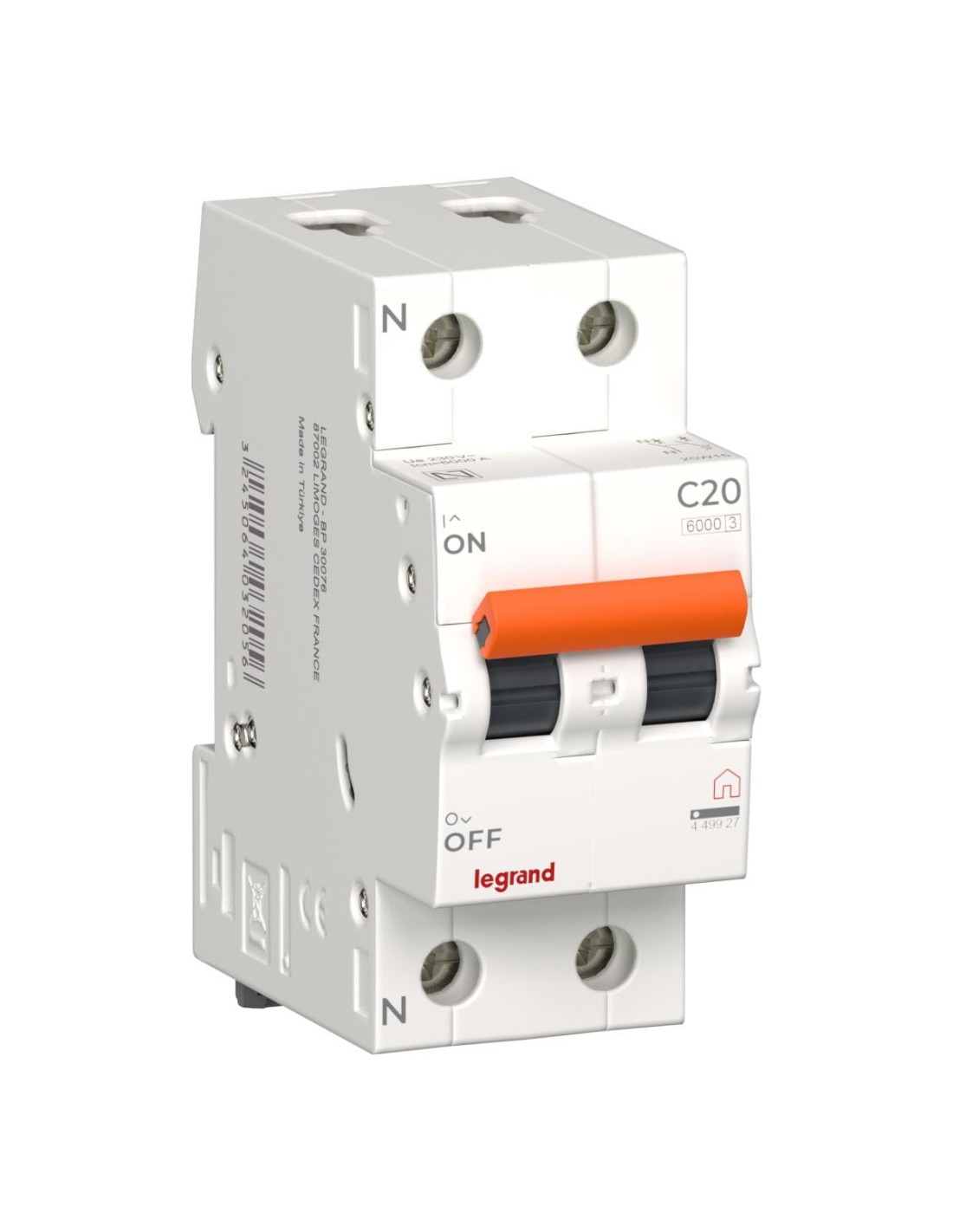

MCB 1P+N 20A C-curve 2 modules 230V

MCB 1P+N 20A C-curve 2 modules 230V

MCB 1P+N 20A C-curve 2 modules 230V

MCB 1P+N 20A C-curve 2 modules 230V

MCB 1P+N 20A C-curve 2 modules 230V

Available In stock 254 Items

Reference LEGRAND 449927

€4.34

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

1P+N miniature circuit breaker with 2 modules, designed to protect installations against overloads and short circuits. Operates at 230 V~ with a rated current of 20 A and C tripping curve. Offers a breaking capacity of 6 kA according to EN 60898, an insulation voltage of 500 V, and an impulse withstand voltage of 4 kV.

Description

1P+N miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for line control and isolation, offering a compact and reliable solution for distribution boards.

Technical features

Rated current: 20 A
Rated voltage: 230 V AC
Tripping curve: C
Breaking capacity: 6 kA according to EN 60898
Width: 2 modules
Depth: 44 mm
Protection rating: IP20
Operating temperature: -25...70 °C
Conductor connection: 1.5...25 mm² (flexible) and 1.5...35 mm² (rigid)
Current limiting class: 3
Overvoltage category: 3

This device guarantees a rapid response to electrical faults, protecting connected equipment. Its modular design facilitates integration into standard panels, optimizing the available space in the installation.

Product Details

Eléctrico

Nominal voltage (V)	230
Rated voltage	230
Rated current (A)	20

Protección

Protection	IP20

Otras

Curve	C
EAN	3414972963473
Manufacturer	LEGRAND
Reference	LEGRAND 449927

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 449927
EAN	3414972963473

Advertencias de seguridad

No

In stock 254 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
