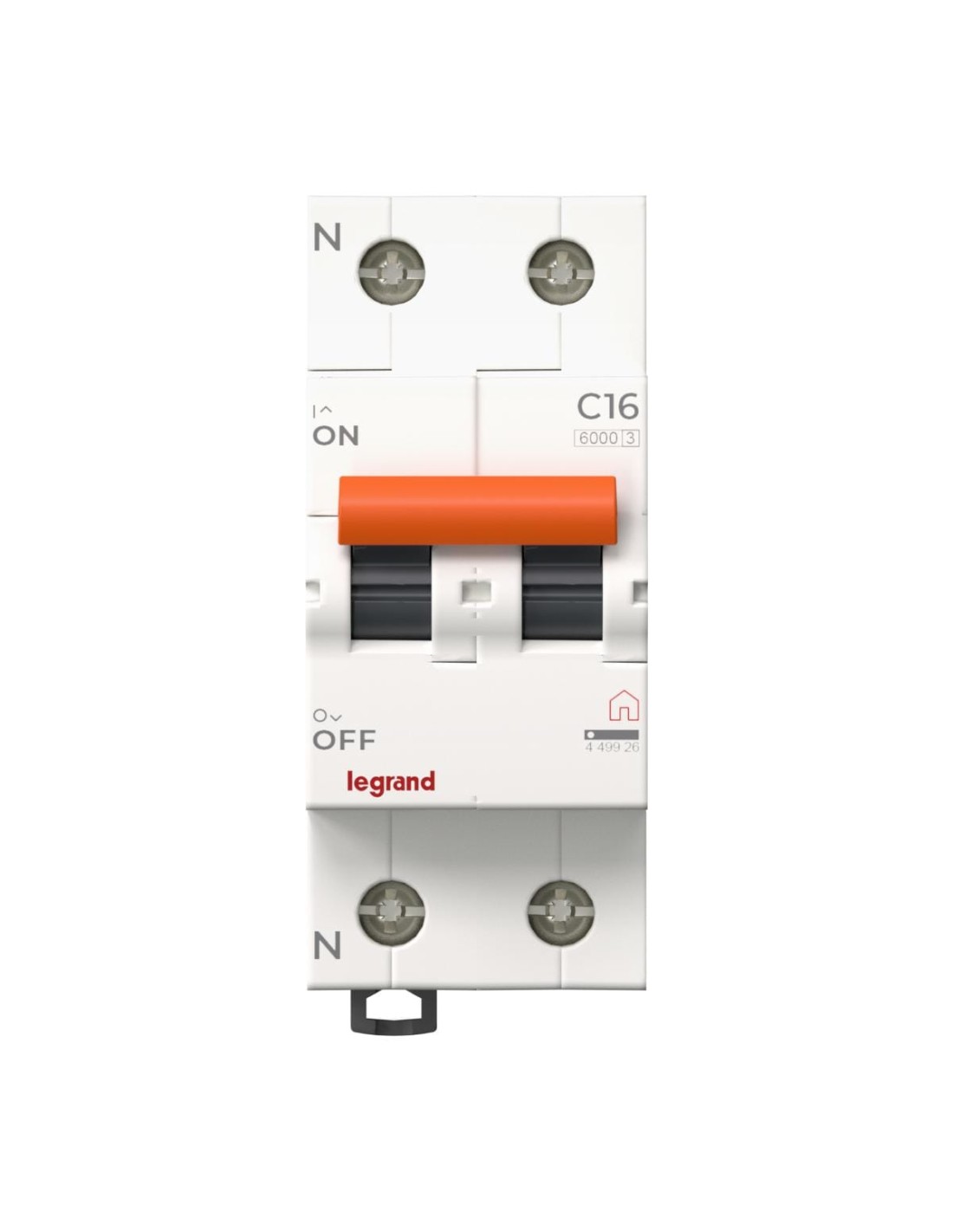

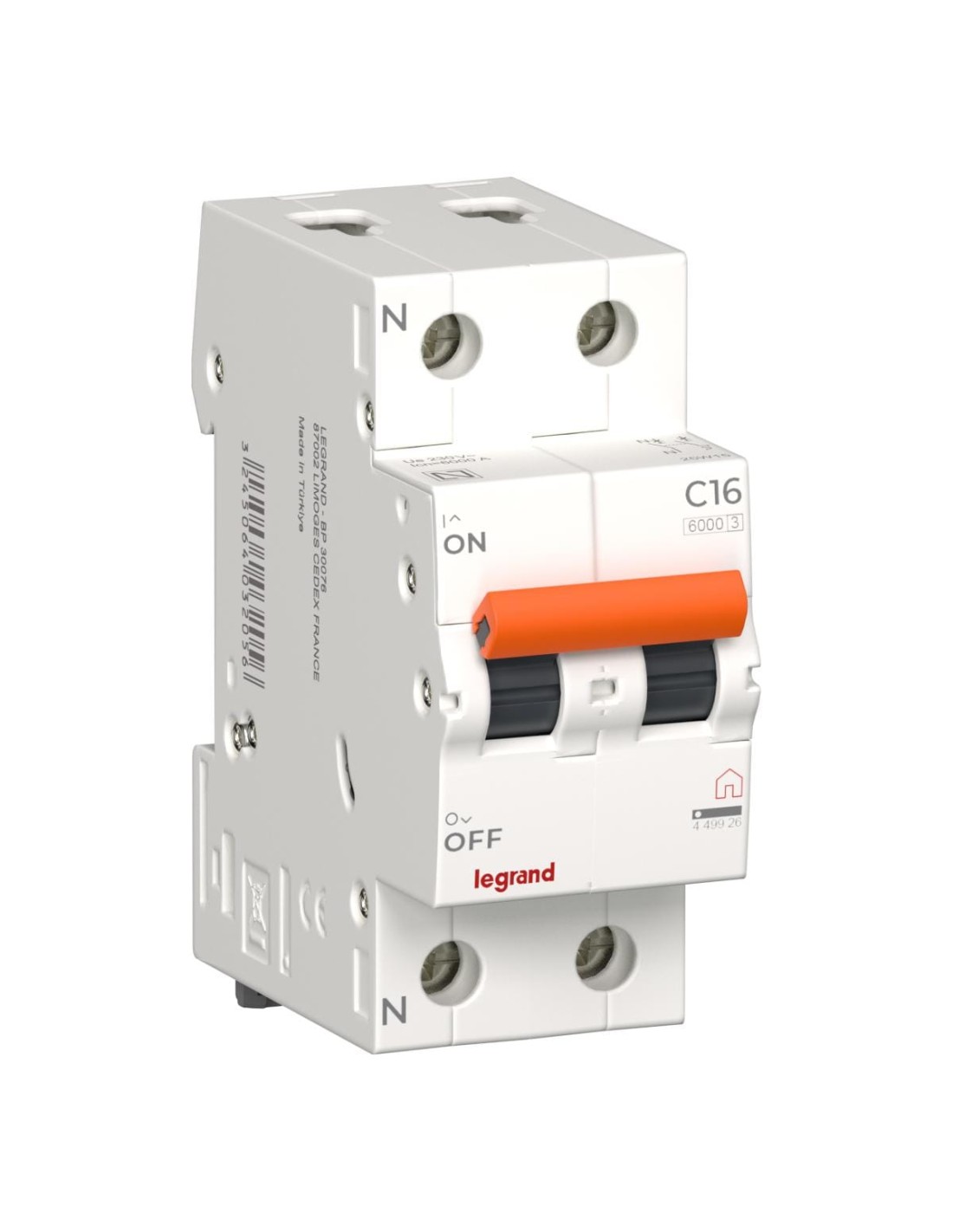

1P+N circuit breaker with 2 modules, designed to protect installations against overloads and short circuits. Operates at 230V~ with a rated current of 16A and C tripping curve. Offers a breaking capacity of 6 kA according to EN 60898, an insulation voltage of 500V, and a construction depth of 44 mm.
Description
1-pole + neutral circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the line. Its compact 2-module structure facilitates integration into standard electrical panels.
This device offers a reliable response to electrical faults thanks to its C tripping curve and 6 kA breaking capacity. Simultaneous neutral switching guarantees safe isolation of the installation. Its 2-module design optimizes space in the panel without compromising line protection.
Product Details
| Long | 44 mm |
|---|
| Rated voltage | 230 |
|---|---|
| Rated current (A) | 16 |
| Insulation voltage | 500V |
|---|---|
| Curve | C |
| EAN | 3414972963442 |
| Manufacturer | LEGRAND |
| Reference | LEGRAND 449926 |
