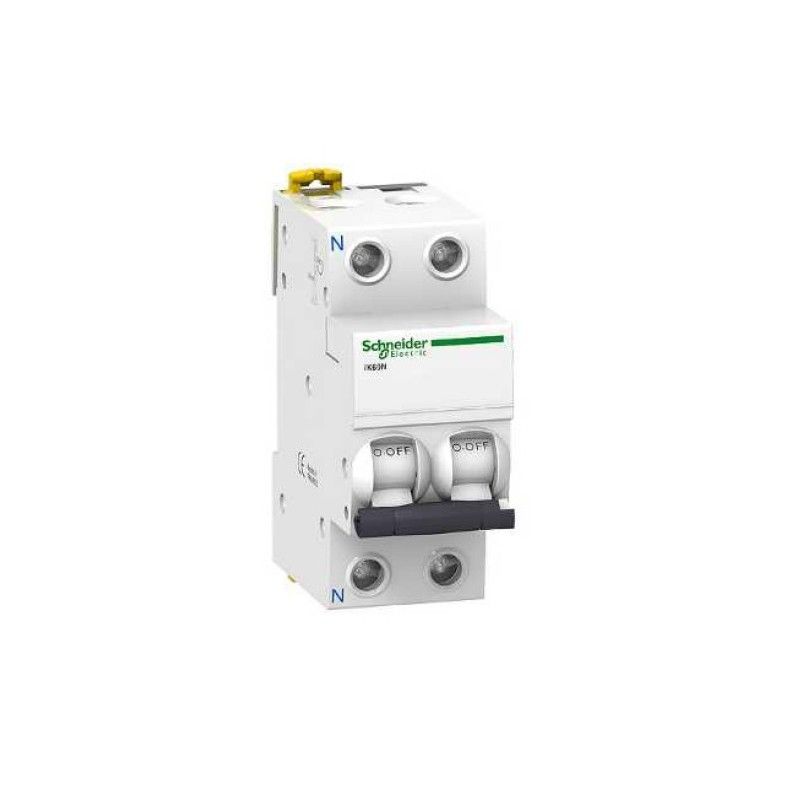

Interruptor automático 2P 40A TERCIARIO Schneider A9F79240

Circuit breaker 2P 40A TERTIARY Schneider A9F79240

Interruptor automático 2P 40A TERCIARIO Schneider A9F79240

Circuit breaker 2P 40A TERTIARY Schneider A9F79240

Circuit breaker 2P 40A TERTIARY Schneider A9F79240

Available In stock 75 Items

Reference SCHNEIDER A9F79240

€45.10

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

2P 40A circuit breaker

tertiary Range

Description

Interruptor automático 2P 40A TERCIARIO Schneider A9F79240

Poder de corte 6000A Curva C
Tensión de empleo 230/400 V CA
Corte plenamente aparente: banda verde en la maneta
Tensión aislamiento 500V CA
Grado polución 3
Tensión impulsional 6Kv
Ancho por polo: 2 pasos de 9 mm

Product Details

Eléctrico

Nominal voltage (V)	230V
Rated current (A)	40

Otras

Curve	C
EAN	3606480093272
Manufacturer	Schneider
Range	Terciario
No. of poles	2P
Reference	SCHNEIDER A9F79240

Información legal

Fabricante	Schneider Electric España, S.A.
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	SCHNEIDER A9F79240
EAN	3606480093272

In stock 75 Items

Downloads

Product sheet Store PDF Download
