INT.AUT Schneider iC60N 2P 6A C 6000A Acc

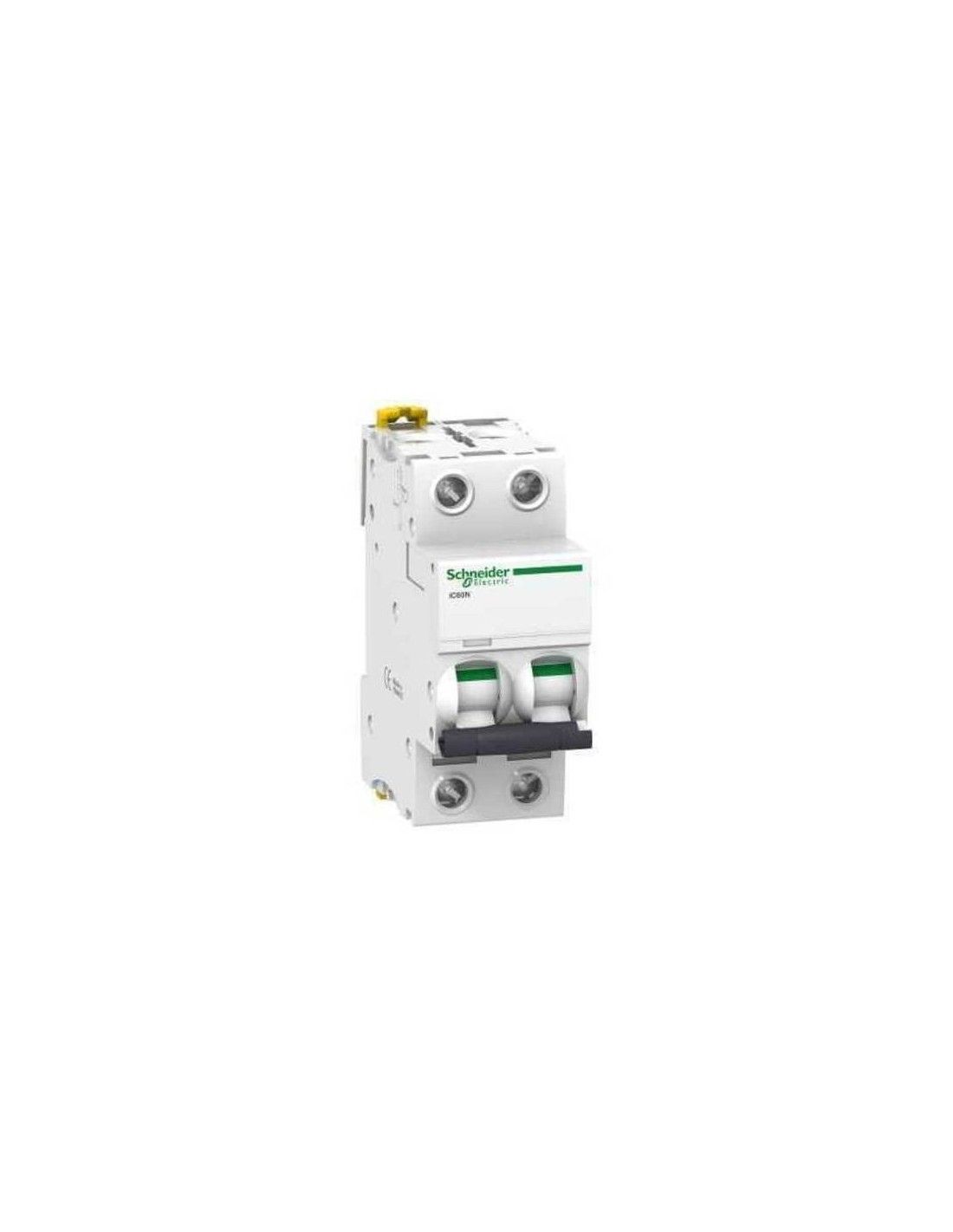

Automatic circuit breaker iC60N 2P 6A curve-C

INT.AUT Schneider iC60N 2P 6A C 6000A Acc

Automatic circuit breaker iC60N 2P 6A curve-C

Automatic circuit breaker iC60N 2P 6A curve-C

Reference SCHNEIDER A9F79206

Available

€34.62

VAT included

Circuit breaker iC60N Acti 9, 2P, 6A, curve C, IP20, 6kA Icn in accordance with IEC 60947-2, 440V AC 50/60Hz, thermal-magnetic, Suitable for isolation. Contact position indicator. Control Type: Lever. Local signals: Trip indicator. Mounting mode: Fixed. Mounting support: DIN rail. Earth leakage protection: Independent block, 85x36x78.5mm, 0.25kg, White. Breaking capacity: 6000 A Icn according to EN 60898-1, 400 V AC 50/60 Hz, 10 kA Icu according to EN 60947-2, 380.415 V AC 50/60 Hz, 20 kA Icu according to EN 60947 -2, 220.240 V AC 50/60 Hz, 6 kA Icu according to EN 60947-2, 440 V AC 50/60 Hz, 36 kA Icu according to EN 60947-2, 12.133 V AC 50/60 Hz, 10 kA Icu according to IEC 60947-2, 380.415 V AC 50/60 Hz, 10 kA Icu according to IEC 60947-2, 72.125 V DC, 36 kA Icu according to IEC 60947-2, 12.133 V AC 50/60 Hz, 10 kA Icu according to EN 60947-2, 72.125 V DC, 6000 A Icn according to IEC 60898-1, 400 V AC 50/60 Hz, 6 kA Icu according to IEC 60947-2, 440 V AC 50/60 Hz, 20 kA Icu according to IEC 60947-2, 220.240 V AC 50/60 Hz, utilization category: category A according to IEC 60947-2, category A according to EN 60947-2, suitable for isolating: yes according to EN 60947-2, yes according to EN 60898-1, yes according to IEC 60947-2, yes according to IEC 60898-1, standards: IEC 60947-2, EN 60947-2, EN60898-1 ,IEC60898-1.

In stock 317 Items

Order now and receive it...

between 13-05-2026 and 14-05-2026 with Correos / Paq Estandar

12-05-2026 with MRW

between 12-05-2026 and 13-05-2026 with Correos

Subscribe To When In Stock

You have successfully subscribed to this product

Product Details

Rated current (A): 6
Curve: C
EAN: 3606480093210
Manufacturer: Schneider
No. of poles: 2P
Reference: SCHNEIDER A9F79206
Safety warning: No
GPSR Safety warning: No
GPSR Manufacturer information: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person: Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer: [email protected]

In stock 317 Items

Reviews (0)

No reviews
