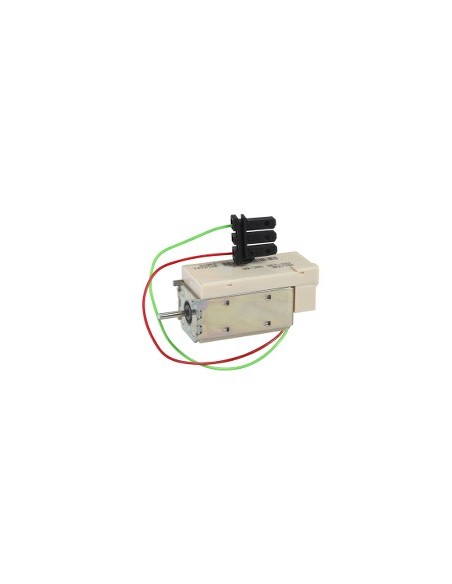

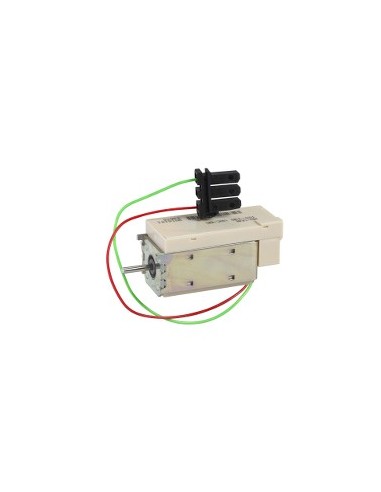

Minimum voltage trip coil MN fixed 24/30VDC
Minimum voltage trip coil MN fixed 24/30VDC

Minimum voltage trip coil MN fixed 24/30VDC

Available In stock 10 Items Reference IMPO 33668
€181.52
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía

Standard minimum voltage firing coil for automatic switches Masterpact NT/NW and Compact NS630b/NS3200, with 24 V AC 50/60 Hz or 24–30 V DC control voltage, maintenance power 4.5 W, response time 50 ms (NS630b...1600) and 55 ms (NS1600b...3200), fixed assembly, compatible with industrial control systems.

Description

Standard minimum voltage firing coil, designed for use in automatic switches of the range Masterpact NT, NW and Compact NS630b...3200. It is used in control applications to activate shooting under reduced voltage conditions, ensuring safe operation under power failure.

Technical characteristics

  • Type of shot coil: Minimum voltage coil
  • Control circuit voltage: 24 V AC 50/60 Hz, 24...30 V DC
  • Shot voltage threshold: 0.35..7 x Un (opening), 0.85 x Un (closing)
  • Maintenance power supply: 4.5 W
  • Type of assembly: Fixed
  • Response time: 50 ms (Compact NS630b...1600), 55 ms (Compact NS1600b...3200), 70 ms (Masterpact NT), 70 ms (Masterpact NW)
  • Compatibility: Masterpact NT, Masterpact NW, Compact NS630b...1600, Compact NS1600b...3200
  • EU RoHS legislation: Proactive (out-of-scope) compliance
  • RoHS China Regulations: Outside the scope
  • Contains SVCH according to REACh
  • No mercury
  • RoHS exemptions: Yes

Product Details

Otras

EAN 3303430336686
Manufacturer SCHNEIDER
Reference IMPO 33668
