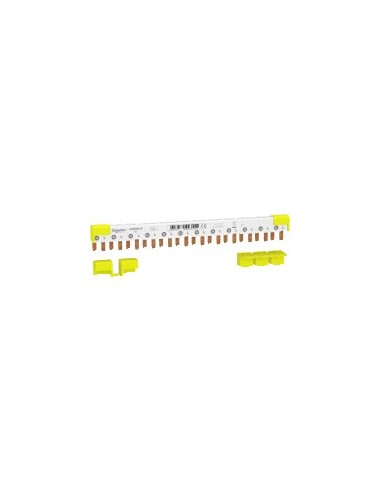

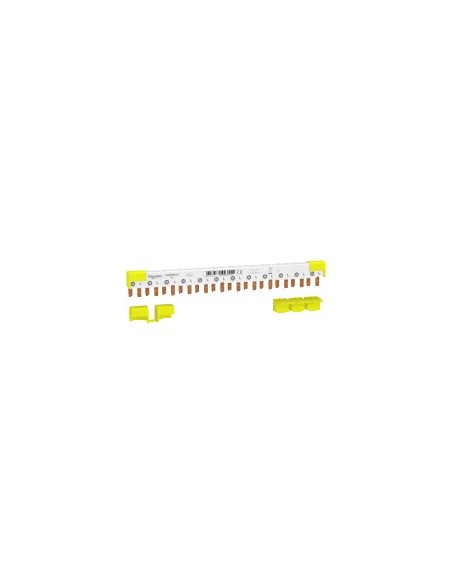

Acti9 12-module 18 mm connection comb
Acti9 12-module 18 mm connection comb

Acti9 12-module 18 mm connection comb

Available In stock 100 Items Reference IMPO A9XPN612
€23.49
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20
  • Colour White

Horizontal connection comb for 12-module 18 mm electrical installations, compatible with Acti9 range. Designed for superior installation in tunnel-type terminals, with 12 N and 1 L tracks, 9 mm connection passage, 400 V AC insulation and 4 kV voltage peak resistance.

Description

Horizontal connection comb for 12-module 18 mm electrical installations, compatible with Acti9 range. Designed for superior installation in tunnel-type terminals, it offers a secure and efficient connection for 12 circuits using a 1L + N configuration. Ideal for distributing phase and neutral form organized in electrical frames.

Technical characteristics

  • Total number of 18 mm modules: 12
  • Number of addresses: 12 tracks N + 1 L
  • Pole configuration for 1 track: 1 1P + N
  • Connection step: 9 mm between phase and neutral
  • Connector type: Tooth
  • Distance between tracks: 18 mm
  • Marked: N L
  • Insulation: Isolated
  • Presentation of the device: Trimmed
  • Nominal current of employment [Ye]: 80 A at 40 °C
  • Nominal employment voltage [Ue]: 230 V AC Phase/N
  • Nominal insulation voltage [Ui]: 400 V AC according to IEC 61439-1
  • Voltage peak resistance [Uimp]: 4 kV
  • Type of assembly: Horizontal
  • Mounting location: Upper at tunnel-type terminals
  • 9 mm steps: 24
  • Height: 32 mm
  • Width: 218 mm
  • Depth: 27 mm
  • Product weight: 579 g
  • Colour: White - cable type: RAL 9003
  • Range compatibility: Acti 9 DT40 Vigi Acti 9 DT60 Acti 9 iTL Vigi TG40 Multi 9 N40 Vigi Multi 9 NC100 Acti9 iDT40 Acti9 iDD40 Acti9 iDD40 TG Vigi iTG40 Acti9 iIG40 Acti9 iDT40K Acti9 iDD40K Acti9 iIG40K
  • Standards: EN/IEC 60439-1
  • Fire resistance: 960 °C (30 s) according to IEC 60695-2-1
  • Degree of contamination: 3 according to EN/IEC 60439-1
  • Degree of IP protection: IP20 with terminal parts and tooth covers
  • Sustainable supply status: Product Green Premium
  • REACh Regulation: Reference does not contain SVHC
  • According to REACh without SVCC: Yes
  • EU RoHS Directive: As per
  • Without toxic heavy metals: Yes
  • No mercury: Yes
  • Information on RoHS exemptions: Yes
  • RoHS China Regulations: Proactive statement by RoHS China (out of the legal reach of RoHS China)
  • WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a garbage container.

Product Details

Dimensiones

Measures 32 mm x 218 mm x 27 mm
Width 218 mm
Long 32 mm
Depth 27 mm
Weight (kg) 0.579 kg

Eléctrico

Nominal voltage (V) 230 V
Rated current (A) 80

Protección

Protection IP20

Otras

EAN 3606489443511
Manufacturer SCHNEIDER
# Elements 12
Reference IMPO A9XPN612
Colour White

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO A9XPN612
EAN 3606489443511
100 Items
