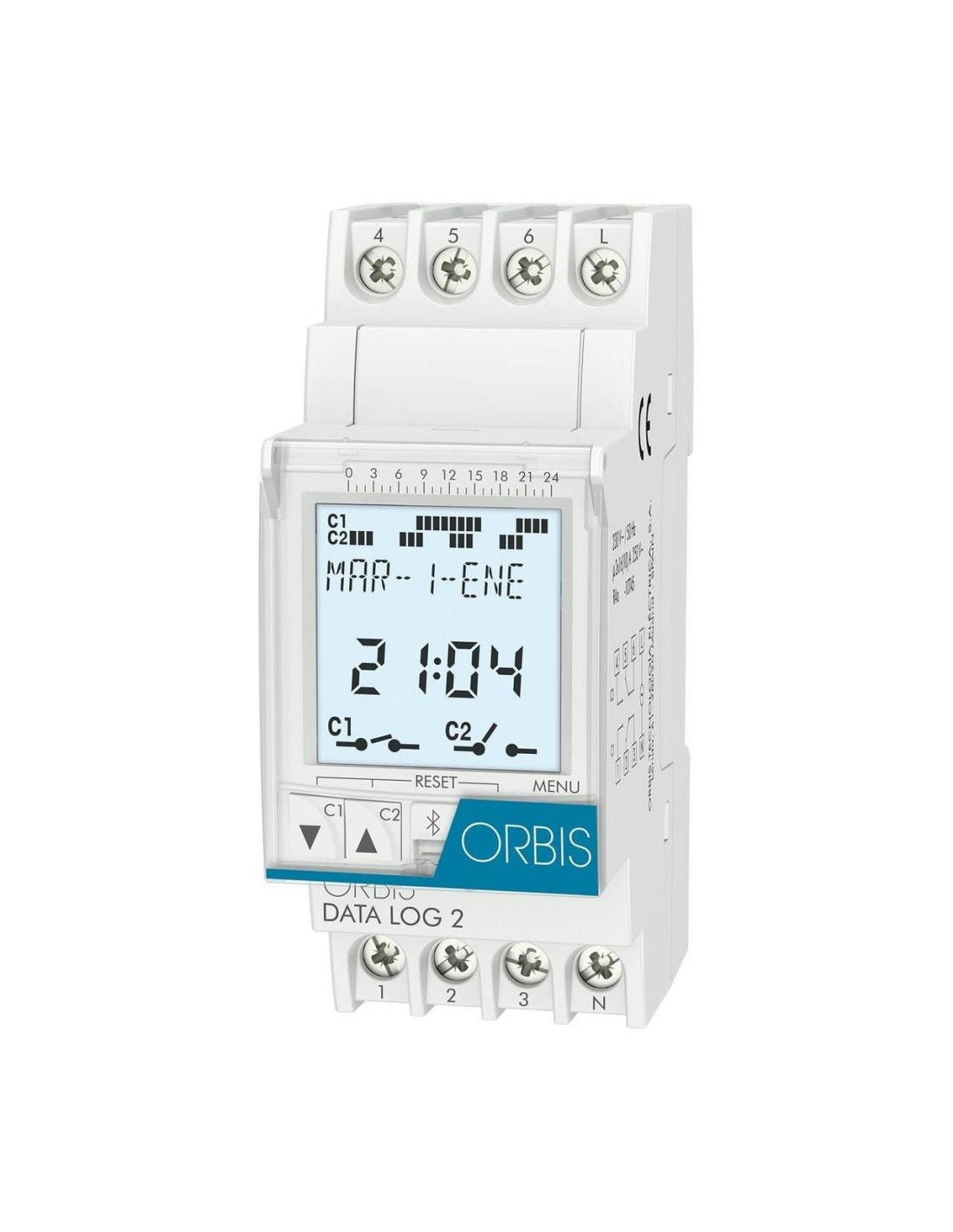

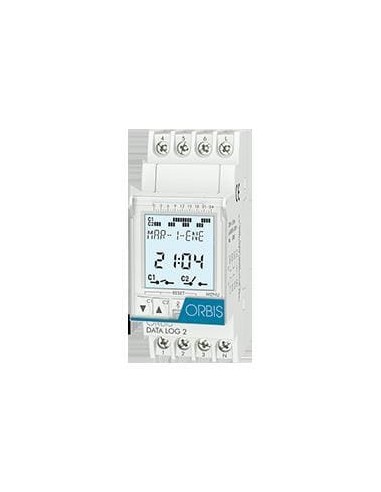

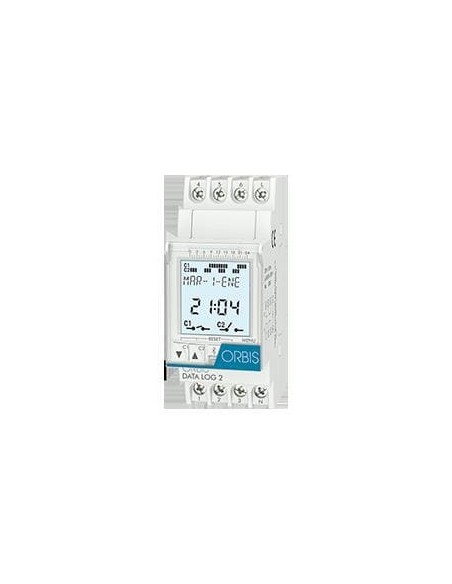

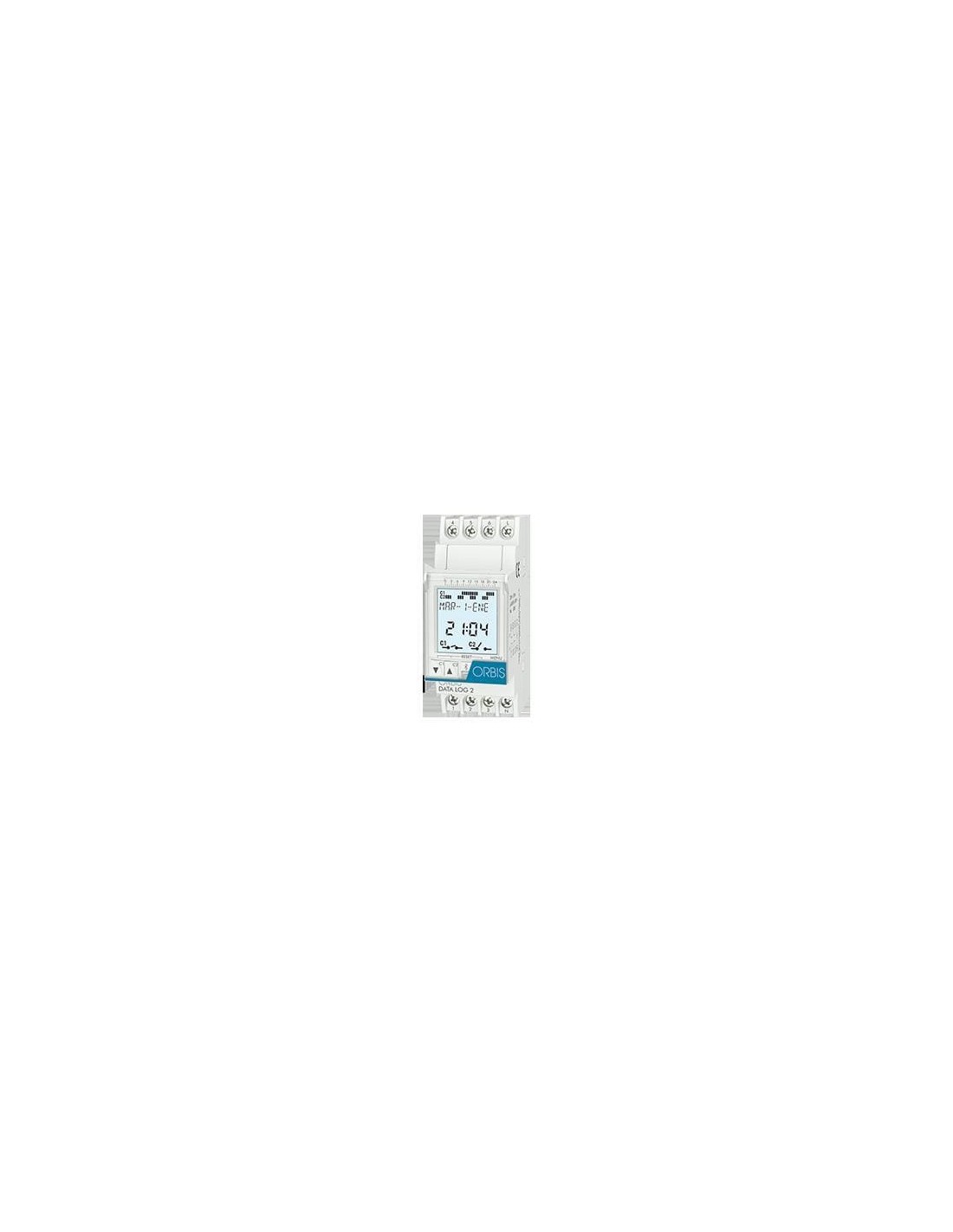

Digital DATA LOG Timed Switch 2 circuits 230V

The digital time switch DATA LOG is an advanced control device designed to manage the switching of electrical charges by precise programming. Its technology allows you to set hours for seconds, days or weeks, optimizing energy consumption in residential and industrial facilities that require flexible and reliable automation.

Technical characteristics

• Power voltage: 120...230 V AC, 50...60 Hz.
• Nominal switching intensity: 16 A to 250 V AC (10 A for inductive loads).
• Maximum load capacity in contacts N.A.: incandescent lamps 3000W, halogens 230V AC 3000W, fluorescent 1200VA.
• Programming: weekly, annual, holidays, impulses and cycles.
• Battery autonomy CR2032: up to 4 years.
• Temporary accuracy: 1 second per day.
• Memory: 40 configuration spaces.
• IP20 protection.
• Quartz controlled for stability.
• Minimum commutation per channel: 60 seconds.

This device offers exceptional versatility, allowing multiple circuits to be managed completely independently. Its storage capacity and the possibility of external programming make it a robust solution to automate lighting, air conditioning or machinery according to specific user needs.

The installation is simple and fast, directly on standard DIN rail. The automatic change between summer and winter time ensures that the device always works with the right time without manual intervention, facilitating its use in environments where temporary accuracy is critical for the operation of connected equipment.
