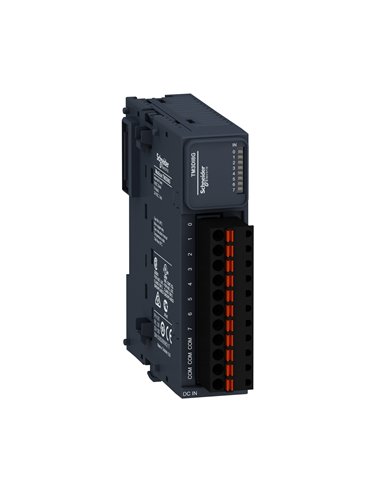

Modicon TM3 - 8 inputs (spring) 24Vdc
Modicon TM3 - 8 inputs (spring) 24Vdc

MODICON TM3 8-input 24V DC discrete input module with IP20 protection

IMPO TM3DI8G
Out of stock
€168.26
VAT included
The TM3 module offers eight discrete inputs with spring-loaded terminals, ideal for industrial applications. Its design allows for easy mounting and features an LED per channel to indicate input status. With IP20 protection, it operates in a temperature range of -10°C to 55°C, ensuring reliability in demanding environments.

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

Description

The TM3 Module is a discrete input device designed for industrial applications, offering an efficient and reliable solution for signal management. With a compact design and a simple interlocking mounting mechanism, this module allows for quick and secure installation in demanding work environments.

  • Number of discrete inputs: 8
  • Input voltage: 24 V DC
  • Digital input logic: Receiver or supply (positive/negative)
  • Discrete input current: 7 mA
  • Guaranteed state voltage 1: 15...28.8 V DC
  • Guaranteed state voltage 0: 0...5 V
  • Input impedance: 3.4 kOhm
  • Input response time: 4 ms (maximum)
  • IP20 protection for harsh environments
  • Operating temperature range: -10°C to 55°C
  • Local signaling: 1 LED per channel (green)
  • DIN rail mounting according to IEC 60715

Product Details

EAN
3606480611377
Protection
IP20
Reference
IMPO TM3DI8G
GPSR Safety warning
No
GPSR Manufacturer information
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR EU responsible person
Schneider Electric España, S.A. / Spain / Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona / [email protected] / +34 930289900
GPSR e-mail manufacturer
[email protected]
