Electrical protection

Showing 265-276 of 4709 item(s)

Interpact INS400 3-pole 400 A isolator switch

Available

Seccionadores

Interpact INS400 3-pole 400 A isolator switch

IMPO 31110

Interpact switch INS400, 3 poles, with nominal current of use of 400 A in AC-22A and AC-23A, nominal voltage of insulation of 750 V AC, short circuit capacity of 330 kA with upstream switch, degree of pollution 3, fixed assembly in rail, rotary control and position indicator, designed for industrial environments with operating temperatures of -25 to 70 °C.

Available

Seccionadores

3P 160 A ComPact Isolating Switch

IMPO 31104

€249.38

ComPact range 3P cut-off switch, with nominal working current 160 A, nominal insulation voltage 750 V AC, short circuit capacity 30 kA at 690 V AC, and mechanical durability of 15000 cycles. Designed for industrial installations with rotary control, fixed rail mounting, and IP40 protection grade.

Available

Seccionadores

4P 100 A ComPact Isolating Switch

IMPO 31101

€220.47

ComPact range 4P section switch, designed for AC 50/60 Hz circuits and direct current up to 250 V. It supports a nominal current of 100 A, insulation voltage of 750 V AC and short circuit capacity of 30 kA. It has rotary control, position indicator and fixed installation on DIN rail.

Available

Seccionadores

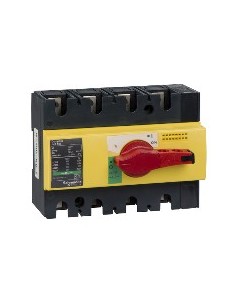

4P red isolating switch 125 A

IMPO 28927

€141.46

ComPact range 4P cut-off switch, with nominal working current 125 A in AC-22A and 80 A in AC-23A, insulation voltage 750 V AC, short-circuit capacity 154 kA with upstream switch, protection rating IP40 and IK07, DIN rail mounting, rotary control and red color, designed for industrial installations with grade 3 contamination.

4P red isolating switch with yellow cover

Available

Seccionadores

4P red isolating switch with yellow cover

IMPO 28925

€137.83

4P Interpact INS100 switch with rotary control, designed for industrial applications. Supports nominal operating voltage up to 690 V AC and 250 V DC, nominal current 100 A, short circuit capacity 154 kA. Degree of pollution 3, DIN rail mounting, IP40 and IK07 protection. Mechanical durability of 15,000 cycles and 1,500 cycles electric in AC-22A and AC-23A...

Available

Seccionadores

4P red isolating switch 80 A

IMPO 28921

€119.40

Compact 4P isolating switch from the ComPact range, designed for AC and DC circuits with a nominal current up to 80 A. Features insulation voltage of 690 V AC and withstands voltage surges of 8 kV. Equipped with rotary handle, position indicator, and DIN rail mounting. Complies with IEC standards and certifications CCC, KEMA-KEUR.

Available

Seccionadores

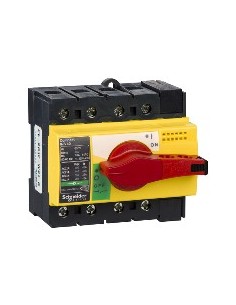

Red 4P Interpact INS40 Isolating Switch

IMPO 28917

€80.13

4P isolating switch from the ComPact range, fixed design with DIN rail mounting, breaking capacity of 15 kA at 500 V AC, nominal current 40 A, insulation voltage 690 V AC, protection degree IP40 and IK07, suitable for industrial environments with pollution degree 3.

Available

Seccionadores

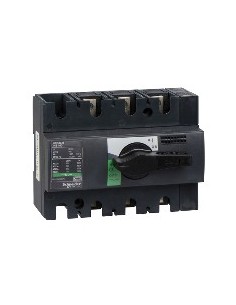

3P Isolator Switch Interpact INS160

IMPO 28912

€145.99

ComPact range 3P section switch, designed for AC and DC applications. It supports a nominal current of 160 A, insulation voltage of 750 V AC and resistance to voltage peaks of 8 kV. It has rotary control, position indicator and fixed installation on DIN rail.

Available

Seccionadores

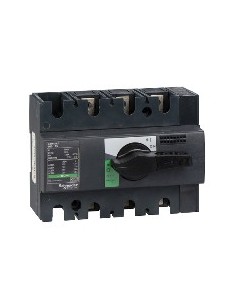

3P Isolating Switch Interpact INS125

IMPO 28910

€111.72

ComPact range 3P section switch, designed for industrial applications with 125 A rated current, 750 V AC insulation voltage and 8 kV voltage peak resistance. Supports up to 154 kA of short-circuit capacity with automatic upstream switch, with 15,000-cycle mechanical durability and IP40 protection.

Available

Seccionadores

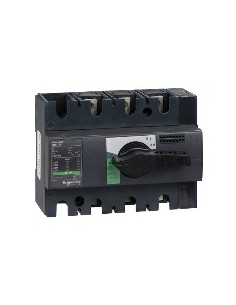

3P Isolating Switch Interpact INS100

IMPO 28908

€104.02

3P isolating switch from the ComPact range, designed for industrial applications with a rated current of 100 A in AC-22A and 63 A in AC-23A, insulation voltage 750 V AC, surge voltage withstand 8 kV, pollution degree 3, and IP40 protection.

Available

Seccionadores

Interpact INS40 3P Isolating Switch

IMPO 28900

€69.79

3P isolating switch from the ComPact INS40 range, designed for AC circuits at 50/60 Hz and DC up to 125 V. Supports a nominal current of 40 A, insulation voltage of 690 V AC, and short-circuit breaking capacity of 15 kA. Features a rotary handle, position indicator, and DIN rail mounting.

Miniature circuit breaker 3P 6.3 A curve K

Available

Miniature circuit breakers

Miniature circuit breaker 3P 6.3 A curve K

IMPO 21108

€66.17

Miniature circuit breaker Acti9 P25M, 3 poles, nominal current 6.3 A, curve K, designed to protect motors in industrial installations. Operates on AC networks 50/60 Hz, with a rated operating voltage up to 690 V AC.
