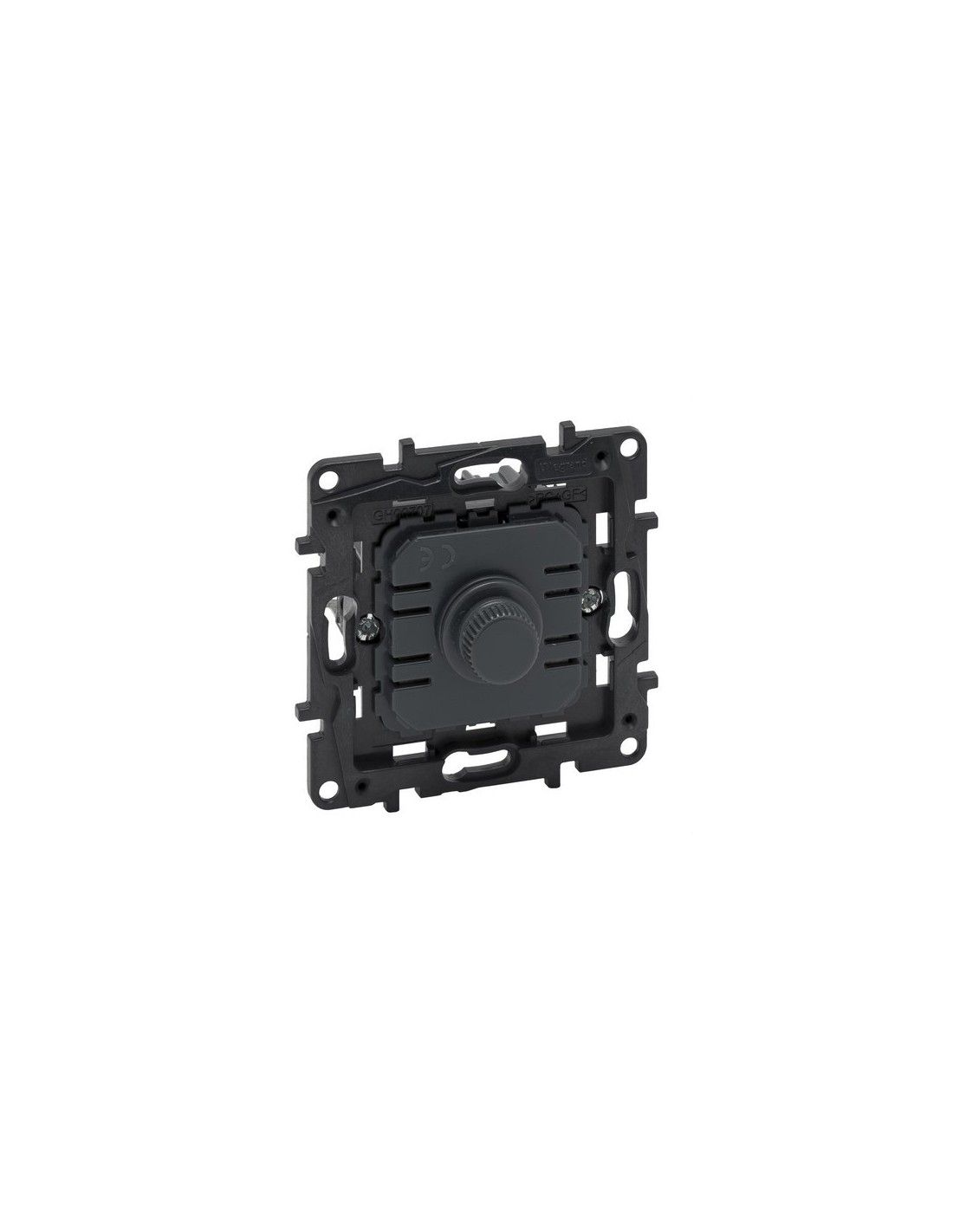

Rotary universal lighting dimmer 250V LEGRAND 864017

Rotary universal lighting dimmer 250V LEGRAND 864017

Rotating universal lighting regulator - 250 V ~ - 2 wires - Allows the control and regulation of all types of lamps: - Dimmable LEDs and CFLs: 3 W to 75 W (and /or 10 lamps maximum) - MBT halogens with ferromagnetic ballast or electronic: 3 VA to 400 VA - 230 V halogens: 3 W to 400 W - Fluo tubes with ballast: 3 VA to 200 VA - Incandescence: 3 W to 400 W - It has different operating modes: standard regulation, predefined level (0%, 33%, 66% and 100%) and pilot (progressive lamp off for 1 hour) - Integrates memory function: the light turns on at the lighting level prior to the last shutdown - Turns the lamp light on and off progressively (2 seconds) - It can be associated with one or more non-illuminated pushbuttons (ref. 8 640 11/12) that allow the on /off and dimming functions - To be equipped with a button and a finishing trim plate - Flush mounting or in surface - Fixing with screws or claws (included with the mechanism) - Supplied nistra with plastic protector for protection during installation
